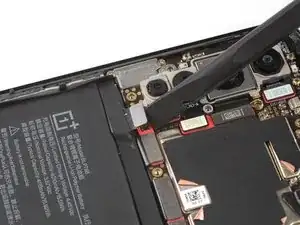

Battery Disconnect
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Specifications
Model: AC2003
Release date: 4. August 2020
Dimensions and Weight: 158.3 × 73.3 × 8.2 mm, 184 g
Display :
- 6.44” AMOLED with 90 Hz and 20:9 ratio

Operating System: OxygenOS (based on Android 10)
Processor: Qualcomm Snapdragon 765G
- Chipset: Octa-core, 2400 MHz, Kryo 475, 64-bit, 7 nm

RAM and Storage: 8GB/12GB LPDDR4X and 128GB/256GB UFS2.1
Cameras:
- Rear-facing camera
 - Main: 48 MP, ƒ/1.75 aperture with OIS and EIS (Sony IMX586)
 - Ultra-wide (119°): 8 MP, ƒ/2.25 aperture
 - Depth: 5 MP, ƒ/2.4 aperture
 - Makro: 2 MP, ƒ/2.4 aperture
 - Front-facing camera
 - Main: 32 MP, ƒ/2.45 aperture with EIS (Sony IMX616)
 - Ultra-wide (105°): 8 MP, ƒ/2.45 aperture

Battery:
- 4115 mAh
 - Charging: 30 W Warp Charge 30T (wired)

Sensors:
- Under-display Fingerprint, Accelerometer, Proximity sensor, Ambient light sensor, Compass

3.5mm headphone jack: no
USB: 2.0 Type-C (supports Type-C headphones)
Wireless Connectivity:
- 2x2 MIMO, Wi-Fi 802.11 a/b/g/n/ac, 2.4G/5G, Bluetooth 5.1 (supports aptX, aptX HD, LDAC and AAC), NFC
 - GSM, CDMA, LTE, 5G
 - GPS (L1+L5 Dual Band), GLONASS, Galileo (E1+E5a Dual Band), Beidou, A-GPS, NavIC
