2003-2007 Honda Accord Key Fob Battery Replacement

Written By: eCuration
  • Comments: 2
2003-2007 Honda Accord Key Fob Battery Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

If your 2003-2007 Honda Accord key fob operates intermittently, the battery may need to be replaced. Use this guide to replace the battery in a 2003-2007 Honda Accord keyless fob remote.

Alternatively, follow the video tutorial from YouTuber NutzAboutBolts to complete the battery replacement.

  1. vaHVKOJeHFIq3PFU
    vaHVKOJeHFIq3PFU
    iLYvD5OBBQI5oAIA
    qdMer1mnNalOP5KI

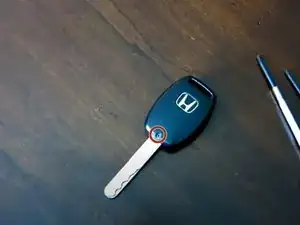

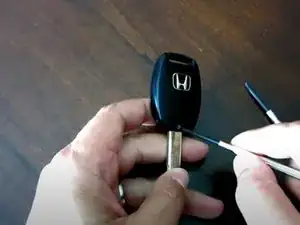

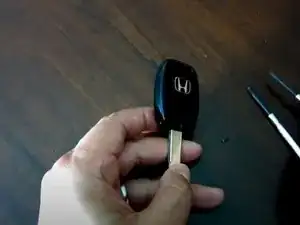

    • Use a Phillips #0 screwdriver to remove the screw at the base of the key fob.

  2. UCjvRbfLqaN2Txqk
    UCjvRbfLqaN2Txqk
    BPuCkeFouHbnJB3f
    fhO5OfEv3ZIV1j5o

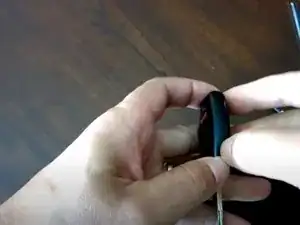

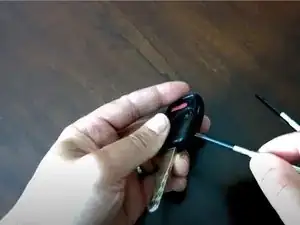

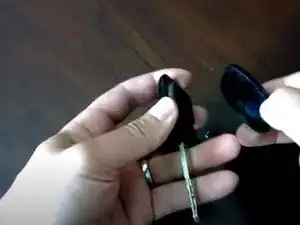

    • Insert a flathead screwdriver into the crack between the top and bottom portions of the key fob.

    • Pry upwards with the flathead screwdriver to loosen the bottom portion of the fob.

    • Remove the bottom portion of the key fob.

  3. UhaVYaG3IQpaKOll
    UhaVYaG3IQpaKOll
    2GYYBURnkyVYAyeY
    cPXhgeXLEWsKB4Sb

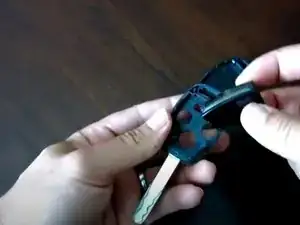

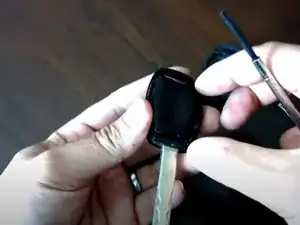

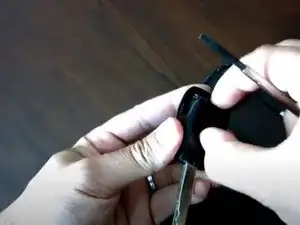

    • Remove the inner portion of the key fob.

  4. M44AwlxxvZAWGEAf
    M44AwlxxvZAWGEAf
    Z2CmNfNPfyZcnr1h
    UxtOhMETWMCfHn3O

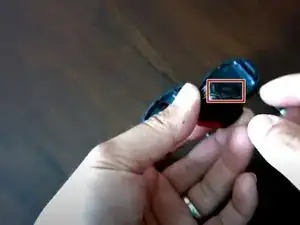

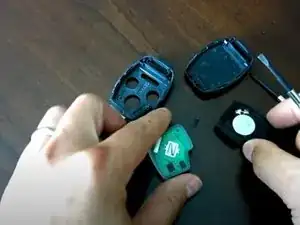

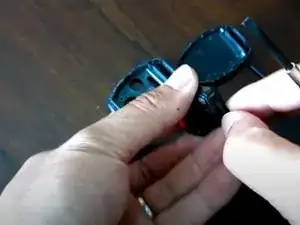

    • Use your fingers to undo the clips at the top and bottom of the fob's inner portion.

    • Separate the two sides of the fob's inner portion.

  5. HC6LLZWjXRIOFCPY
    HC6LLZWjXRIOFCPY
    rbkFwkVXcOuIo5eH
    nFOVgP1GSfV5WyPX

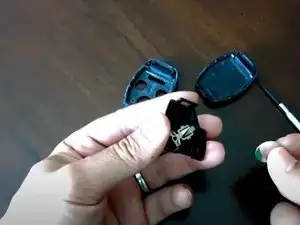

    • Use a flathead screwdriver to pry up the circular battery.

    • Remove the key fob's battery.

    This is nice except for the fact that it shows the battery positioned upside down.

    essin -

Conclusion

To reassemble your device, follow these instructions in reverse order.
