2005 Honda Accord Headlight Replacement

Difficulty

Easy

Steps

9

Time Required

10 - 20 minutes

Introduction

Most people do not know how to change their headlight bulbs but it is a very easy thing to do. In this guide we will show the steps you need to take and some brief instructions.

  1. sroD63SNTSclVLFr

    • Pop open the hood of the vehicle.

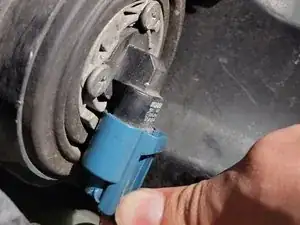

  2. UlxbDFB6TRkImiKX
    UlxbDFB6TRkImiKX
    6HlXmakWJ2CbHyMs
    Z2FkHMenXjy5eDEr

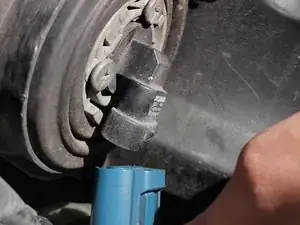

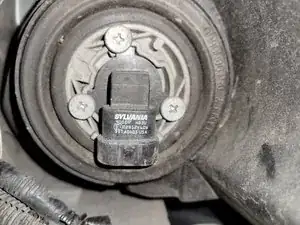

    • Remove the headlight connector by depressing the clip and pulling it away from the vehicle.

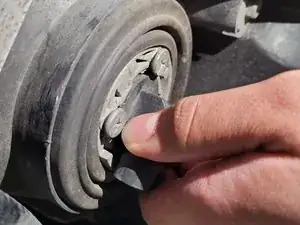

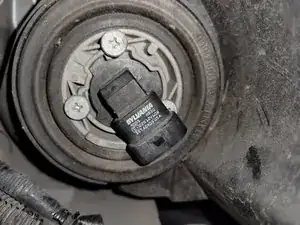

  3. DvfoiDEndlN1eWA4
    DvfoiDEndlN1eWA4
    RQNs1DjyuRO5oHpD

    • Turn the headlight counter clockwise to release it from the headlight assembly.

  4. vi2RROTNSRGPoK3h
    vi2RROTNSRGPoK3h
    3yIZc1ZPXnfoBLTu

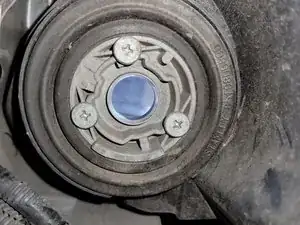

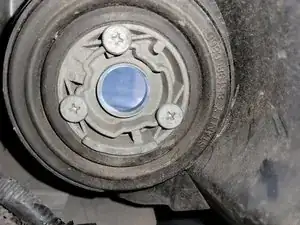

    • Pull the headlight bulb out of the socket.

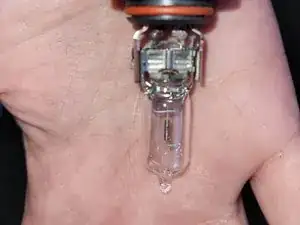

  5. dI2M1baLp5ll1REj
    dI2M1baLp5ll1REj
    ByOXwyCFCSVXWldO

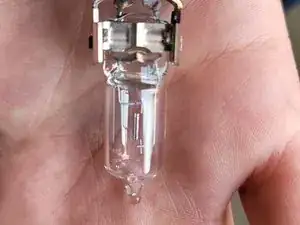

    • Inspect your old headlight bulb and compare with new one to ensure it is the same.

  6. eREeNm25Vt1kPKSw

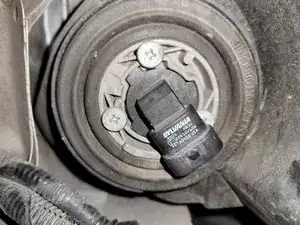

    • Align notches and insert the headlight bulb into the socket.

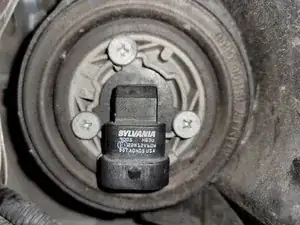

  7. 1fTRklsmQsZDDDd6

    • Turn it clockwise until the headlight clips in.

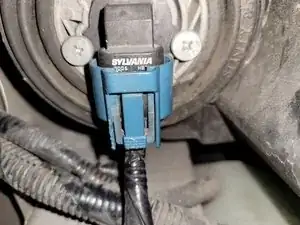

  8. XawMo5B4J3laEIJm

    • Reconnect the headlight pigtail.

    • You will hear a click when the connector is fully seated.

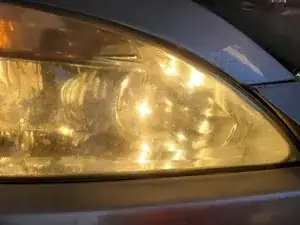

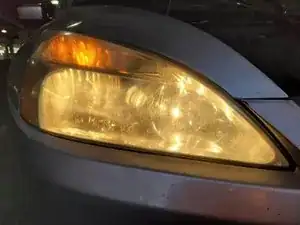

  9. I1MUHZ1DRhZKFBji
    I1MUHZ1DRhZKFBji
    aRqaIeRBgRD3j4QQ
    s1QStiU3H3e5BIPl

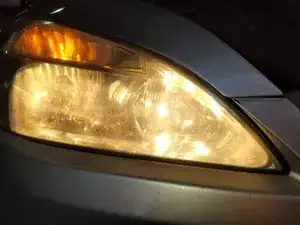

    • Turn on the vehicle to make sure the headlight lights up.

Conclusion

To reassemble your device, follow these instructions in reverse order.
