Unplug the 2 connectors on the corner of the card.
-

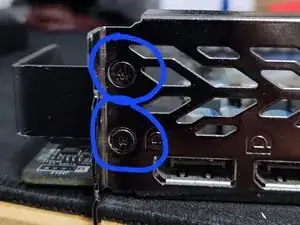

Unscrew the shroud screws circled blue and lift up from the slot side pasing tabs between fan blades.
-
Remove the screw securing the power cable and bend away 2 metal tabs on the heat sink.
-

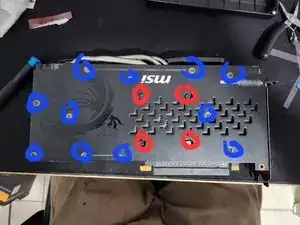

Remove fan screws circled red.
-
-
-
Red screws hold the heat sink.
-
With heat sink removed the last connector can be unplugged.
-
Remove blue screws to get to the thermal pads.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
