APC Smart-UPS SRT30000XLA Battery Cells Replacement

Written By: Alex Diaz-Kokaisl
  • Comments: 1
APC Smart-UPS SRT30000XLA Battery Cells Replacement

Difficulty

Moderate

Steps

20

Time Required

30 - 45 minutes

Introduction

Use this guide to test and replace the individual battery cells in your APC uninterruptible power supply model SRT30000XLA.

  1. UtGCrqmoDE6xLFCZ

    • Before you begin your repair, unplug your UPS.

  2. vtZhrKKlUs5rD4xf
    vtZhrKKlUs5rD4xf
    xmtqq6gHPIeYUNnJ

    • Plastic clips secure the front bezel.

    • Pull the left edge of the front bezel away from the device to release the plastic clip.

  3. LCfdf3QvyKhO3ZF3
    LCfdf3QvyKhO3ZF3
    CHqY1ipbv5LHGhgG
    4fwjXkxsINSkGuZT

    • Continue pulling the left edge of the front bezel away from the device until the right clip releases.

    • Remove the front bezel.

  4. QelYjVSPWLXDFZBn
    QelYjVSPWLXDFZBn
    425uGqspJLsAJhFc
    re2glQOqigWH3dQH

    • Use the cutout in the battery connector to pull it toward the right edge of the device and disconnect it.

  5. rMXyLdFLtvRkyBK1
    rMXyLdFLtvRkyBK1
    1xCIQDjYiXfOemtQ
    ATFcI1gSOWhb4qis

    • Lift and rotate the battery connector to move it out of the way of the battery assembly.

  6. pyWZtm2dVMCoIVcX

    • Use a Phillips driver to remove the three 23 mm‑long screws securing the battery assembly.

  7. Gjx4nRNmCE2kcufG
    Gjx4nRNmCE2kcufG
    HrR1YKSHyFxxSkMW

    • Pull the battery assembly out of the housing until it stops at its first plastic tab.

    • You'll feel the assembly stop abruptly and hear the plastic tab "click."

  8. fMB6Or4AfpnZUOkM
    fMB6Or4AfpnZUOkM
    5WOSVFBbWoXXWFuA
    s2l3MVXNuRuo54Ri

    • Depress the plastic tab while pulling on the battery assembly until it clears the tab.

  9. IjNnYLsMgnnXfJ2r
    IjNnYLsMgnnXfJ2r
    RBSZGRCNA43IJtLq

    • Continue pulling the battery assembly out of the housing until it stops at its second plastic tab.

    • You'll feel the assembly stop abruptly and hear the plastic tab "click."

  10. oSi6JoCRDJcf2EZv
    oSi6JoCRDJcf2EZv
    ecjBnjIxKhq5Syjr
    pBXDpKYYY6lMyZO5

    • Depress the plastic tab while pulling on the battery assembly until it’s free from the housing.

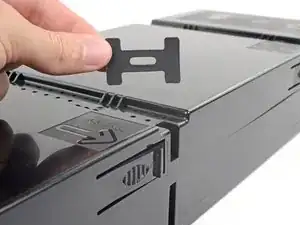

  11. XEUQQJujSeqoRQLw
    XEUQQJujSeqoRQLw

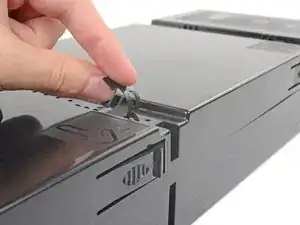

    iKDUhV5sPno31TBe
    tacwGKGa2PvrFmGl

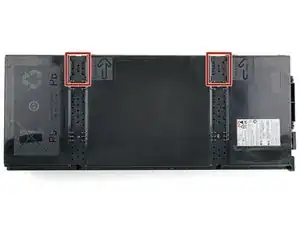

    • Peel off any screw covers from the top of the battery assembly.

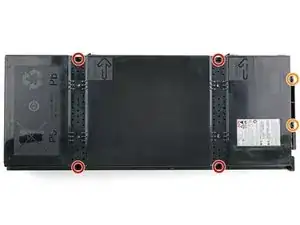

  12. BwSWZRpJ2nNHXnls
    BwSWZRpJ2nNHXnls

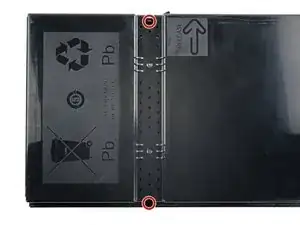

    ehYfWrotDtCefjtO
    TQdW4SHkEUNKIFJw

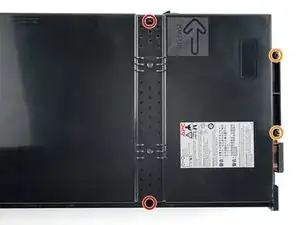

    • These screws are very tight and easily strip. Apply constant downward pressure to avoid stripping them.

    • Use a Triangle 3 driver to remove the six screws securing the battery assembly's top shell:

    • Four 22.7 mm-long screws

    • Two 15 mm-long screws.

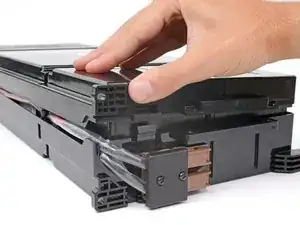

  13. SPhLhKyoeE1aBw3I
    SPhLhKyoeE1aBw3I

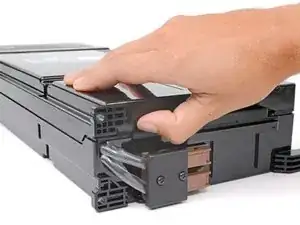

    2563fhWIMF2TuZEc
    MhsdgCHRLR5rgOxD

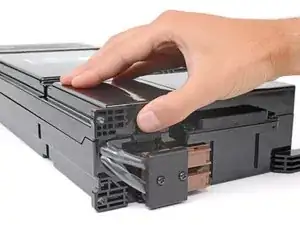

    • The top shell of the battery assembly is secured with a plastic clip.

    • Depress the plastic tab above the battery connector and lift up the top shell to release the clip.

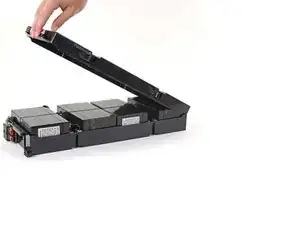

  14. 631AtZlDBoDa6i35
    631AtZlDBoDa6i35

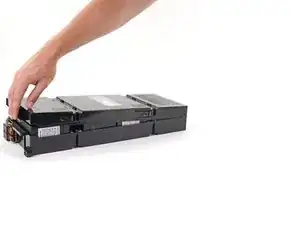

    lhsaPaDBCNoghXNI
    V1xwnM5iK6MWLWQQ

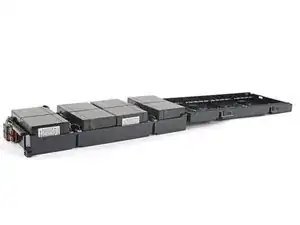

    • The back of the top shell is secured with tape. Be careful to not peel the tape off during this step.

    • Swing the top shell over the battery assembly and lay it down.

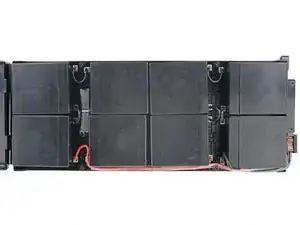

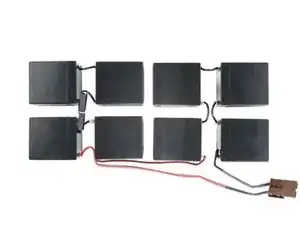

  15. SPZdPGByvHWDsrtF
    SPZdPGByvHWDsrtF
    bGyXp3OeqGqhKhVd

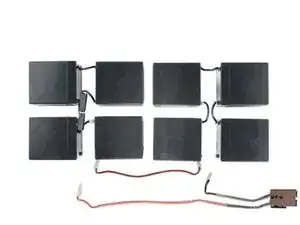

    sdqtIpDnP2n1T6Rx

    • If any battery cells are leaking or showing signs of corrosion, put on nitrile gloves to protect your hands.

    • The next five steps demonstrate how to remove any one battery cell. The battery cells are identical, but the connector positions vary.

    • During reassembly, refer to these photos to reconnect the batteries properly.

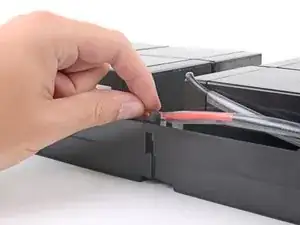

  16. VSj6XrJRNPMKDPuf
    VSj6XrJRNPMKDPuf
    JF6xEUGBHSlhFZpj
    iNUNC6diBZY5o3oi

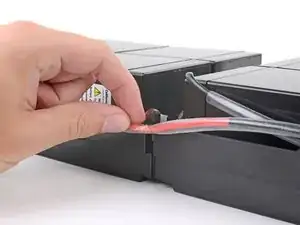

    • If a light red wire is covering the battery cell you're working on, you’ll need to move it out of the way.

    • Lift the light red wire out of its spot next to the screw post to access the connector beneath.

    • During reassembly, make sure the wire is put back in its original spot or else the top shell won't close properly.

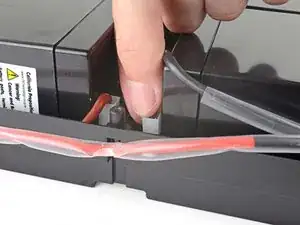

  17. oxleLMjZWKO5mIYV
    oxleLMjZWKO5mIYV
    NBjNSqCXmlQkgRn2

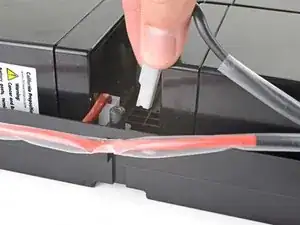

    • Grip the white spade connector and pull up to disconnect it from the negative terminal of the battery cell.

    • Always pull on the connector itself, not the wire.

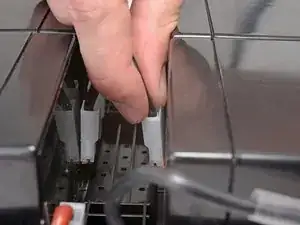

  18. WRyEDlUJXIUXTVNO
    WRyEDlUJXIUXTVNO

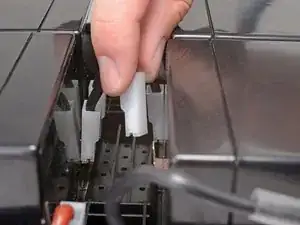

    RJcKnvM5uuywZDLV

    • Repeat for the other spade connector attached to the positive terminal of the battery cell.

  19. 16AaAxI6MKnJsWuu
    16AaAxI6MKnJsWuu

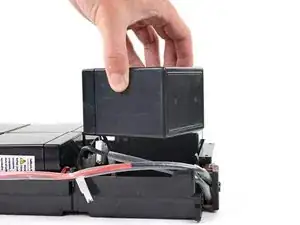

    6PSJtOpTSfhxSPKN

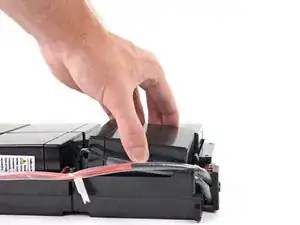

    • Lift the battery cell out of its housing and remove it.

  20. hJgXH3hJlR1lAMbE
    hJgXH3hJlR1lAMbE
    jobRXEYbJZ4x6SAU

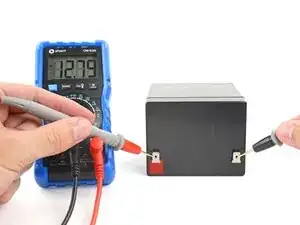

    • If you own a multimeter, you can determine the battery cell's health by measuring its voltage.

    • Follow this guide to use a multimeter and measure voltage using these parameters:

    • If your battery cell's voltage is less than 10 V, replace it.

    • Charge the entire battery assembly to 100% and test the cell again. If your battery is less than 12 V, replace it.

Conclusion

Take your e-waste to an R2 or e-Stewards certified recycler.

To reassemble your device, follow these instructions in reverse order.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our APC Smart-UPS SRT30000XLA Community for help.
