ASUS Chromebook C100PA-RBRKT07 Battery Replacement

Written By: Tiffany Foo
  • Comments: 0
ASUS Chromebook C100PA-RBRKT07 Battery Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 45 minutes

Introduction

Details to remove the battery of ASUS Chromebook Flip C100PA-RBRKT07

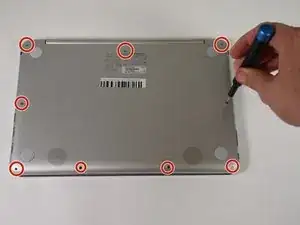

  1. 4wjcnV6IlBCgMwSe

    • Use the T5 screwdriver to remove the nine 2.1 mm screws from the bottom of the device.

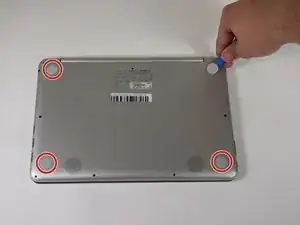

  2. WdtUjsDWci3fK6oZ

    • Use the iFixit opening tool to remove the 4 pads to reveal six 3.1 mm screws underneath.

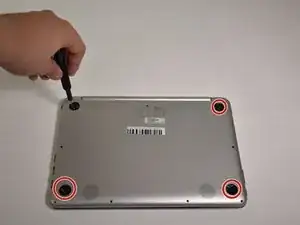

  3. XLUTqenDOL2tMfWc

    • Use the T5 screwdriver to remove the 6 3.1 mm screws under the pads.

    • There might be a layer of tape that covers the screws. Remove the tape first with a pair of tweezers.

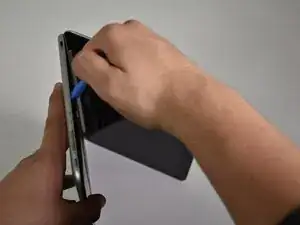

  4. GSsdILXRhCgY2oLI

    • Use the iFixit opening tool to pry the backing of the device off.

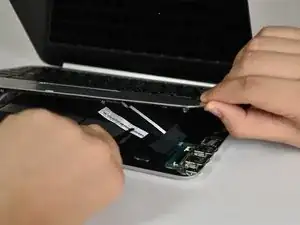

  5. FMXPigUcxjpTX2S4

    • Use the tweezers to separate the cables from the motherboard.

    • You need to reach inside and peel some tape to disconnect the wire.

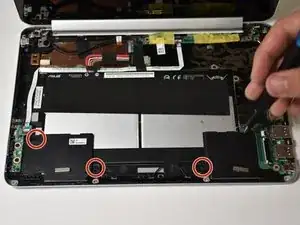

  6. YODbF4ayG2D1pO4O

    • Use the JIS1 screwdriver to remove the four 2.1 mm screws around the audio cards.

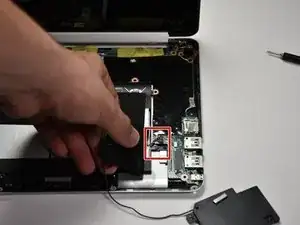

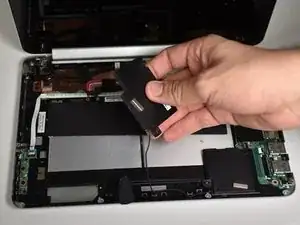

  7. SAikkYEZ6or1i2ct
    SAikkYEZ6or1i2ct
    cMMq6FxkA1KQqaBP

    • Gently disconnect the audio cards, exposing the battery.

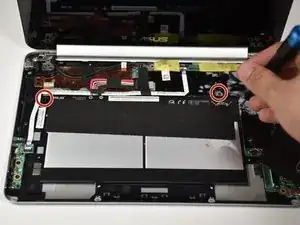

  8. bFw1xfulRpnwNMyA

    • Use the J00 screwdriver to remove the three 1.7 mm battery screws.

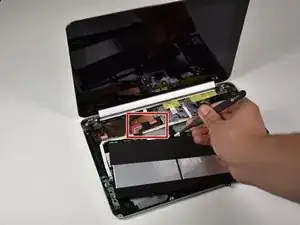

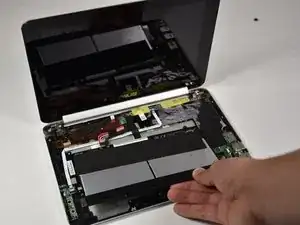

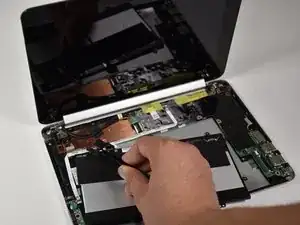

  9. xAGMWUuG6ooBVLi1
    xAGMWUuG6ooBVLi1
    nJPmOx6a4AMw42TU
    ix1BXcDRGWKhRJEQ

    • Grip the battery and remove it from the device.

    • Remove the battery cable out of the motherboard by lifting the battery cables.

Conclusion

To reassemble your device, follow these instructions in reverse order.
