Introduction
This procedure is not necessary if you're just replacing the LCD panel; it is only used if you need to replace the entire display assembly, including the LCD, top cover, front bezel and hinges, along with the associated antennas and camera.
-
-
Using the Phillips #1 screwdriver, remove eighteen 7 mm screws from the back panel of the device.
-
-
-
Use a plastic opening tool around the edges of the laptop and remove the back panel from the device.
-
-
-
Push on the sides of the connector with a plastic spudger to separate the cable from the motherboard.
-
-
-
Firmly pull the end of the black wire attached to the Wi-Fi card upwards and remove it from the device.
-
Repeat with the white wire.
-
-
-
Pull the end of the display cable attached to the motherboard straight up to remove.
-
Rotate the cable out away from the motherboard.
-
-
-
Insert a screwdriver or spudger under the hinge to get it started then rotate it open by hand as far as possible.
-
-
-
Insert a screwdriver or spudger under the hinge to get it started then rotate it open by hand as far as possible.
-
-
-

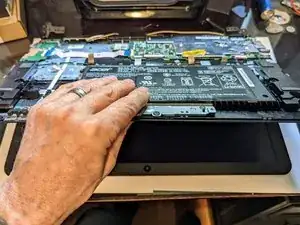

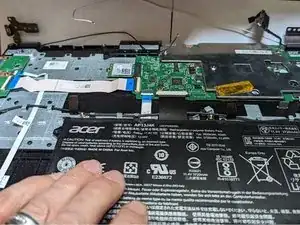

Lift the palm rest assembly from the front then slide it away from the hinges slightly to remove the assembly from the display.
-
To reassemble your device, follow these instructions in reverse order.
