Aiptek Pocket DVII 1.3M LCD Display Screen Replacement

Written By: Gyozo Aba Hivatal
  • Comments: 0
Aiptek Pocket DVII 1.3M LCD Display Screen Replacement

Difficulty

Moderate

Steps

10

Time Required

No estimate

Introduction

  1. XdqPZA4M3RZNjynt
    XdqPZA4M3RZNjynt
    ONgh6GsOPF1shtj4
    bxqJ1J2AKyQUGrpO

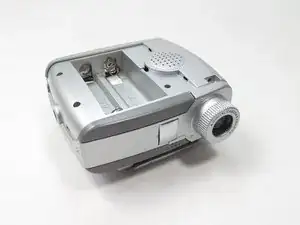

    • Remove the battery cover.

    • Remove the batteries.

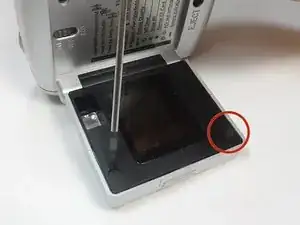

  2. hdQECFDpVVdF2heT
    hdQECFDpVVdF2heT
    3dsSsjSb2nDvmUCx

    • Remove the sticky black dots.

    • Remove the three black 4mm screws from the flip screen. Use a Phillips head screw driver.

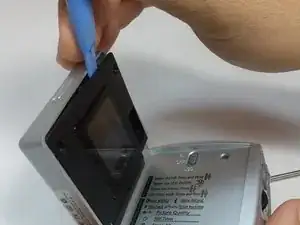

  3. aBZNlYLiUW5SEmJ5

    • Using an opening tool, separate the cover from the screen.

    • The cover won't completely come off. This will happen in the next step.

    • Don't be afraid to use a little more force.

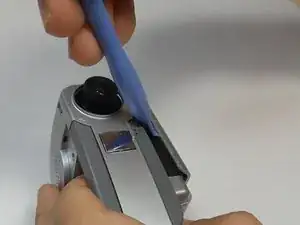

  4. dI2AIEfR3Fdc1JjX

    • Using an opening tool remove the outside cover of the flip screen.

    • Move the cover towards the lens and then away from the screen.

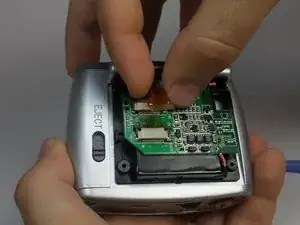

  5. nNMYOUKWVmsBhZYR
    nNMYOUKWVmsBhZYR
    CYRsS6jslGqiWMsq

    • With the cover off, push the brown locking mechanism up, so the picture cable can be remove.

    • You only need to unplug the bottom cable in the picture.

  6. 1AKuJTLU1mWDiKGs

    • Remove the two black screws from the circuit board.

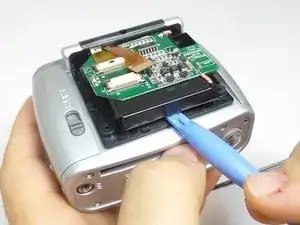

  7. 3dBWYKOE2Heh5Zal

    • With the opening tool, pop up the screen assembly.

    • The screen is glued to the black cover. Use more force if needed.

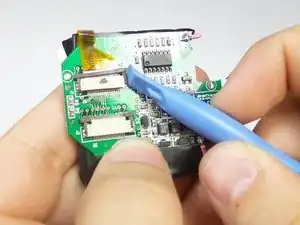

  8. ywYAGcumSR6L5y11

    • As in step 5, push up the brown locking mechanism of the remaining cable.

    • Unplug the picture cable.

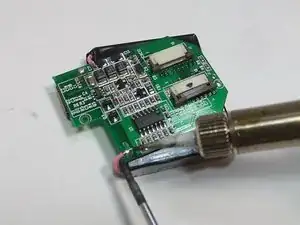

  9. HvXiIOiNt2bdNucd

    • Turn the circuit board over and with a soldering gun remove the two wires on each end.

    • Use a screwdriver to pull the loosened wire away.

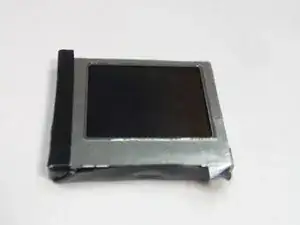

  10. JjgNLBrevAKrQJ1N

    • With the wires no longer holding the circuit board and screen together, remove and replace the broken screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
