AlphaSmart Pro Motherboard Replacement

Written By: Ashley Orr
  • Comments: 0
AlphaSmart Pro Motherboard Replacement

Difficulty

Moderate

Steps

7

Time Required

10 - 15 minutes

Introduction

  1. KEnwcpQErGXcLOvL
    KEnwcpQErGXcLOvL
    CVJZT1vpYwFWQ2GV
    YeLRFUDs1MlMs4sy

    • Power off your AlphaSmart Pro device and remove the batteries before beginning disassembly.

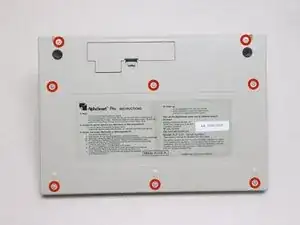

    • Remove all eight 1 cm Phillips head screws from the back panel of the AlphaSmart Pro with the Phillips #00 Screwdriver.

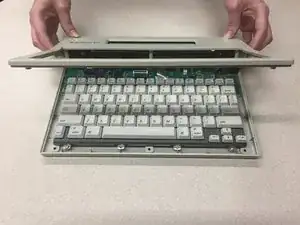

    • Carefully separate the front panel from the back panel.

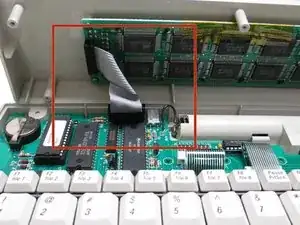

    • Notice that the front and back panels are still connected by a ribbon cable.

  2. 6ELBSigvMWKvGA3f
    6ELBSigvMWKvGA3f
    ZaNLTipuaJsRr2I6
    WbjnQ4DAZLZ4LNci

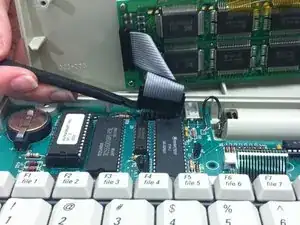

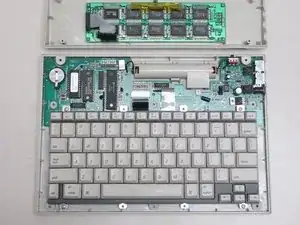

    • To remove the ribbon cable, use the spudger to lift each side of the connector from the socket.

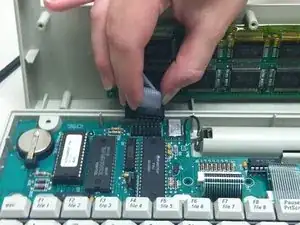

    • Gently pull up on the connector to completely remove the connector from the socket.

    • Remove front panel from the motherboard.

  3. ePoZECFpaRDqIuwA
    ePoZECFpaRDqIuwA
    MusZdtCgseSeeVBF
    ffA2VSq1jZc6WJrs

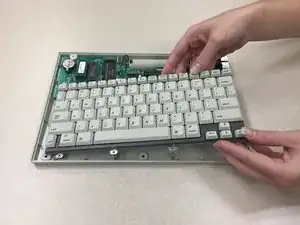

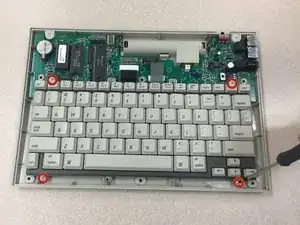

    • Use the Phillips #00 Screwdriver to remove the four 1 cm screws from each corner of the keyboard.

    • Gently lift the keyboard from the rear panel.

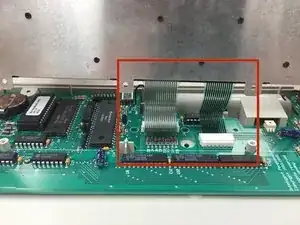

    • Notice that the keyboard is still connected to the motherboard by two ribbon cables.

  4. m6a53IynO4VUu4vh
    m6a53IynO4VUu4vh
    KcauPUsqQpJuSJOJ
    NWeqa1mF2FhGY6y2

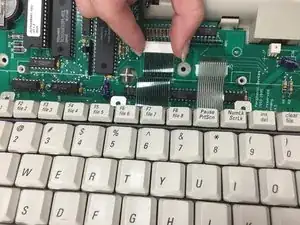

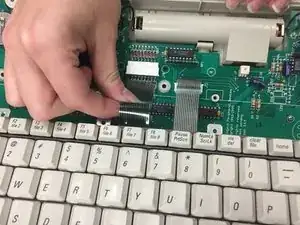

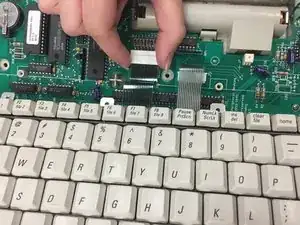

    • To remove the ribbon cable, gently pull the connector in the direction of the ribbon cable.

    • Pull the ribbon cable to remove it from the connector.

    • Repeat the exact steps above for the other ribbon cable.

    • While the large connector on the left must be pulled toward you in order to remove the ribbon cable, the smaller connector on the right must be pushed away from you.

  5. tbYGXKH2rxJCh31J

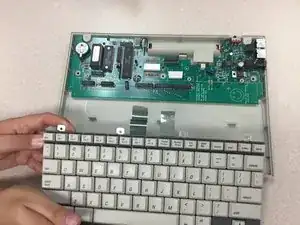

    • Remove keyboard from motherboard.

  6. 4YtdvJfKQNLScyUQ
    4YtdvJfKQNLScyUQ
    k1SyHmSJLOS4rx6W

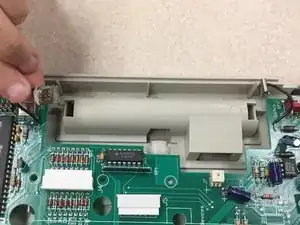

    • Flip the AlphaSmart Pro over so that the rear panel is facing upward.

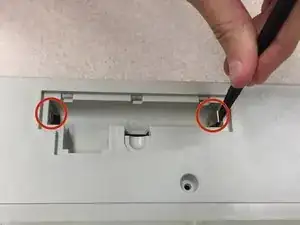

    • Using a spludger, carefully disconnect the battery prongs, located in the battery compartment.

  7. BdXgsIVFFjio2DOk
    BdXgsIVFFjio2DOk
    ndGrxVhIAJCPRFgI

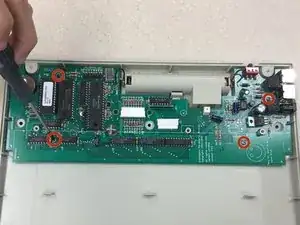

    • Using a Phillips #00 Screwdriver, remove the four 0.8 cm screws from the motherboard.

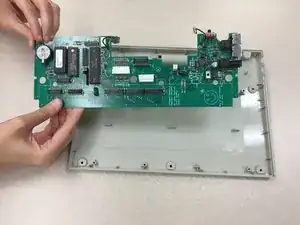

    • Carefully lift the motherboard away from the rear panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
