Introduction
If you are having various issues with your device, this guide will show you how to remove and replace the motherboard.
-
-

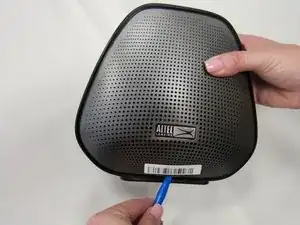

Use blue plastic opening tool to remove the external speaker face by placing it in the slight opening at the bottom.
-
Use a lever motion, push the tool down, lifting the speaker face.
-
Use fingers to grip and remove speaker face.
-
Repeat on reverse side to remove the second speaker face.
-
-
-
Orient speaker so volume buttons are facing away from you, and Bluetooth and power buttons are on the left-hand side.
-

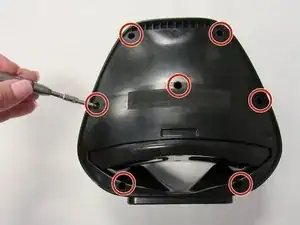

Remove the seven 14mm screws using the Phillips #1 screwdriver.
-
-
-

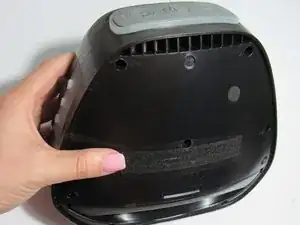

Reorient speaker so Bluetooth and power buttons are now on the right-hand side.
-

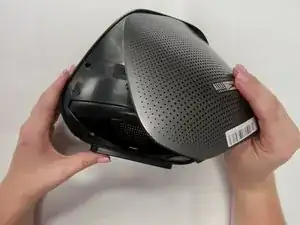

Separate the two panels along the crease.
-
Blue plastic opening tool may be needed to separate panels.
-
Remove the panel with no buttons to expose internal area of the device.
-
-
-

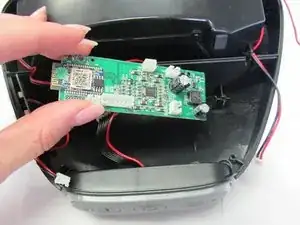

Remove the five wiring attachments (for the volume board, bluetooth board, speakers, and microUSB) from their connection to the motherboard by pulling slightly.
-
To reassemble your device, follow these instructions in reverse order.
