Introduction
This will guide you through the process of replacing your Astro Pyle PTBL7C's speakers.
Parts
-
-

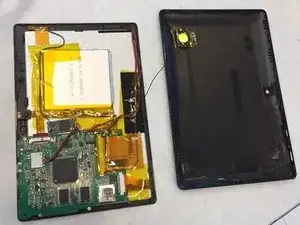

Slide the flat end of the spudger under the front edge of the screen and carefully pry it open.
-
-
-

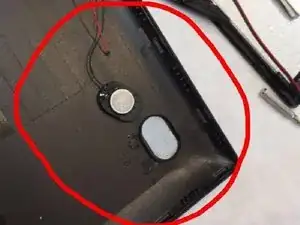

Locate the Speakers; they should be attached to the case as shown.
-
Follow the wires back to the motherboard, removing all tape covering the wires along the way.
-
-
-
Desolder the black wire from the motherboard. This will separate the speakers from the board, allowing you to replace them.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
