Asus RT-N56U Disassembly

Written By: afixer
  • Comments: 0
Asus RT-N56U Disassembly

Difficulty

Moderate

Steps

6

Time Required

45 minutes - 1 hour

Introduction

The Asus RT-N56U Wireless Router was released in Early 2011. It featured both 2.4GHz and 5GHz wireless networking, 2 USB 2.0 Ports, 4 Ethernet Ports, and a thin & stylish design!

  1. tOtcnNCjIHIbpnS1
    tOtcnNCjIHIbpnS1
    woDXRBJpyaQW2jU1
    TWiUHDSApHdZxsjr

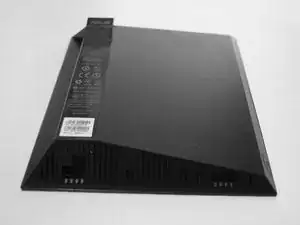

    • If the stand is slotted into the bottom, flip the router upside down and gently pull right to remove it.

  2. NiFOHXIbEMPYmM54
    NiFOHXIbEMPYmM54
    ZQVyykMMHXeJOIuo
    iTcQcgAmYvsBxwC1

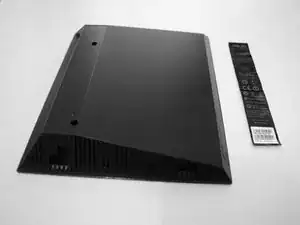

    • Work carefully to peel the label on the back side off.

    • Try not to damage the label, as it can be important later.

  3. HTTvATnwrR1mrSlw
    HTTvATnwrR1mrSlw
    GmwoaPh6Mc3wS4eW
    l1l4jL5ho4HbUTSa

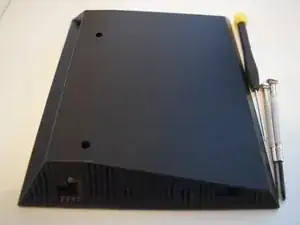

    • Unscrew the 2 Phillips screws securing the front casing in place.

  4. PYA3RtFuj2yEQn6O
    PYA3RtFuj2yEQn6O
    3ZQMeGE4rAteecJk
    XNSVEh45yEVtJxGi

    • Remove the adhesive and clips also securing the front casing and lift it like a book from the left side, then remove it.

  5. tkWpBo2cRRDKKqBK
    tkWpBo2cRRDKKqBK
    CRcULkvmV6COhKbi
    5lDESiIAvBx3AbrK

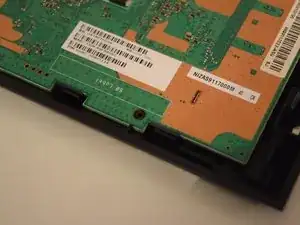

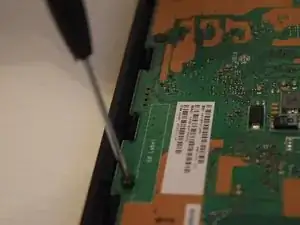

    • Remove the 2 Phillips screws securing the main board to the casing.

  6. lxWFRhbo4cmEOsKk
    lxWFRhbo4cmEOsKk
    dQAQqpeqUpVPGl2s
    iRCjEMMxOnhiAXAA

    • Lift to around a 20° angle.

    • Gently pull up slightly, then the board should unlock to allow you to rotate it to around a 90° angle and remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
