BLU Life X8 Motherboard Replacement

Written By: Alexander Prasil

Comments: 0

Difficulty

Moderate

Steps

Time Required

10 minutes

Introduction

The motherboard of the phone is the main circuit board that holds the memory and the CPU. Since replacing it is a difficult and sometimes necessary process, this guide will explain how to access, remove, and replace your BLU Life X8 motherboard.

Tools

Step 1

Flip the phone over so that the screen is facing down.

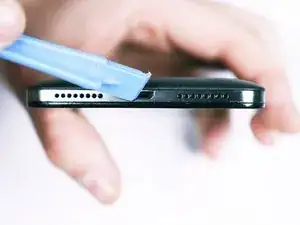

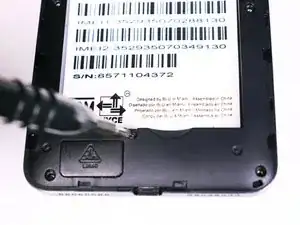

Slide the opening tool between the micro-USB port and the back cover.
Use the opening tool to create a gap.

Step 2

Use your thumb to pry off the back panel once the gap is large enough.

Step 3

Once the back panel is off, locate the indent at the bottom of the battery.
Use your thumb to slip the battery out of the case.

Step 4

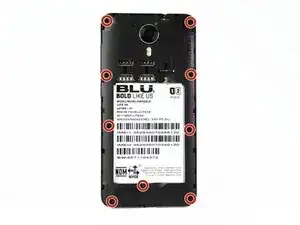

Use the Phillips #00 bit to undo the nine 1.5mm screws from the back of the device.

Step 5

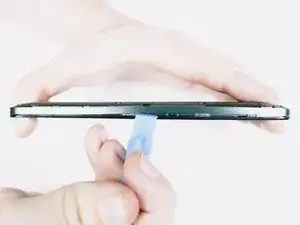

Wedge the opening tool into the seam of between the screen and the gray frame.
Run the opening tool along the seam to release the clips that hold the two pieces together.
You may need to use the opening picks to prevent the clips from re-engaging.

Step 6

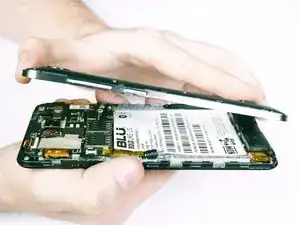

Once all the clips have been released, lift the frame and set it aside.

Step 7

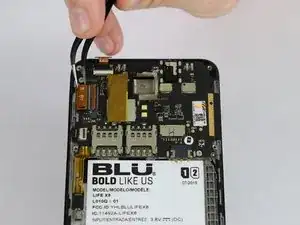

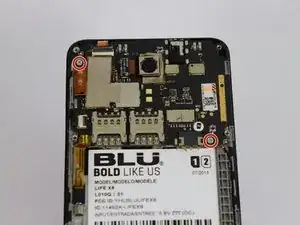

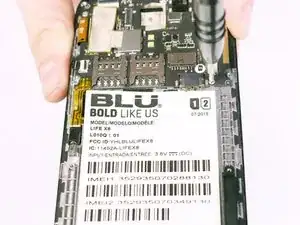

Use the Phillips #00 Phillips bit to undo the two 1.5mm screws from the motherboard.

Step 8

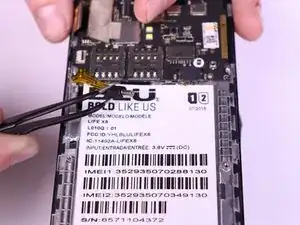

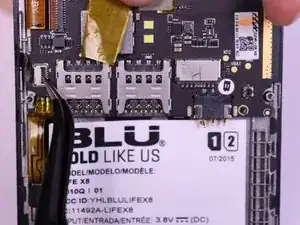

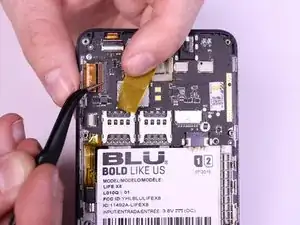

Use the tweezers to peel away the mesh tape and reveal the ribbon connectors.

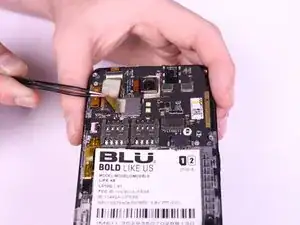

Use the tweezers to lift the brown and black tabs to release the ribbon cables and unlock them.
