BRCK v1 Modem Replacement

Written By: Jeret Buerger
  • Comments: 0
BRCK v1 Modem Replacement

Difficulty

Moderate

Steps

8

Time Required

15 minutes

Introduction

Using a hex 2.0 driver, you will take off the top cover in order to access the modem. With a pair of tweezers you will be able to remove and replace the modem.

  1. hIsSTGQ4eFDvdqf4

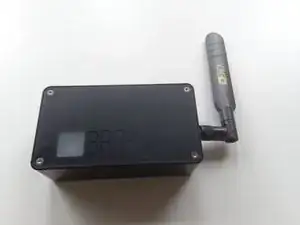

    • Place the face of the device showing BRCK face up.

  2. YmU6MudTPLigt6yN

    • Remove the four screws(4mm hex head) on the corners of the device with a Hex 2.0 Screwdriver.

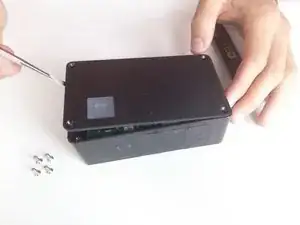

  3. yTbOtBGblLV21Pbr

    • Remove the top cover.

  4. PG2EoDheB3JXQr6E

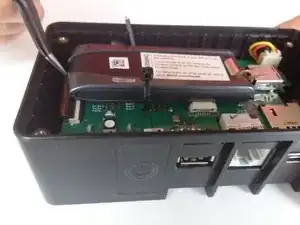

    • Cut the black zip tie holding the modem down.

    • Caution By cutting the zip tie, you void any manufacturer warranty you may have on the device.

  5. iRjbuBDSwKBwFX3F

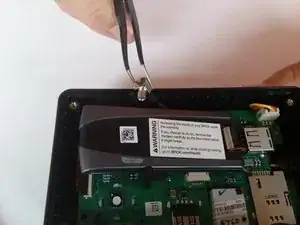

    • Remove the connection located on the edge of the modem.

  6. 1usVt4QADf2WTuCB
    1usVt4QADf2WTuCB
    T1TkhsAWlH1XIU2x

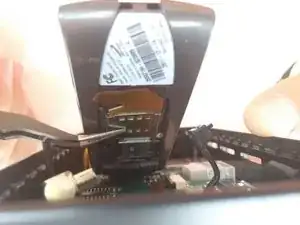

    • Slightly lift the modem to reveal the brown ribbon connector and metal connection plate, located on the bottom of the modem.

  7. 3DwgdqL5btj5KEcB
    3DwgdqL5btj5KEcB
    JHUmDQKtDC3vSTUv
    UMGFWbfknSSTWCWi

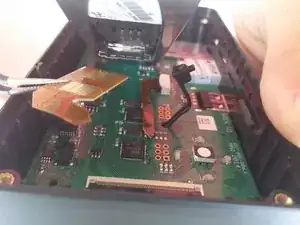

    • Using your tweezers, gently push on the metal plate and slide it down toward the base of the modem to release the locking mechanism.

    • Lower the plate and gently pull the ribbon out of the face plate.

    • Caution Be extremely gentle while preforming this step. The ribbon is brittle and prone to breaking if bent too much. Make sure you go slowly so that you do not damage the device.

  8. AWsPkaffO1JrqAlW
    AWsPkaffO1JrqAlW
    O5LeZds1ZPFXwHiq

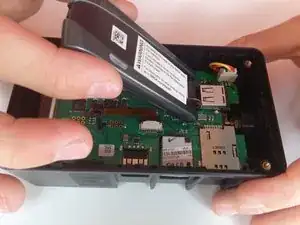

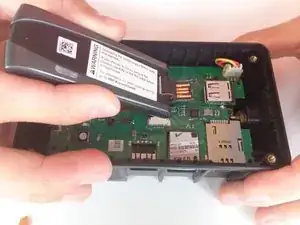

    • Remove the modem from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
