Introduction
This is a prerequisite-only guide! This guide is part of another procedure and isn't meant to be used alone.
-
-

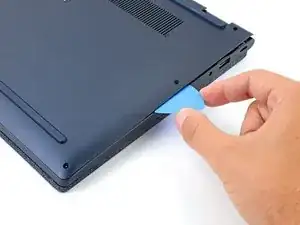

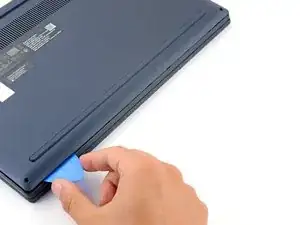

Insert an opening pick between the lower case and the chassis at a hinge corner.
-

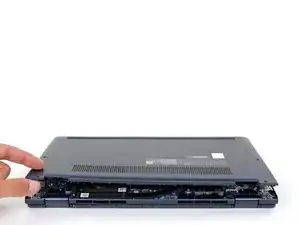

Pry up with the pick to release the clips securing the lower case.
-

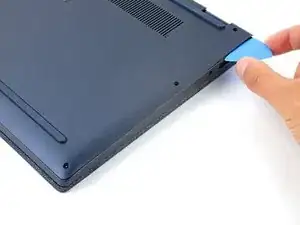

Repeat the process on the other hinge corner.
-
-
-

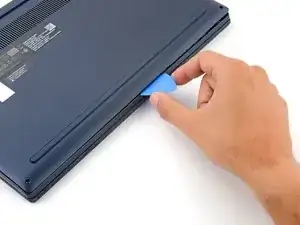

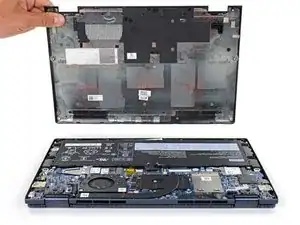

Continue sliding the opening pick along the front and left edges to release the remaining clips.
-
-
-

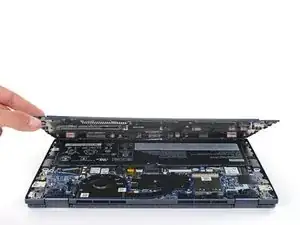

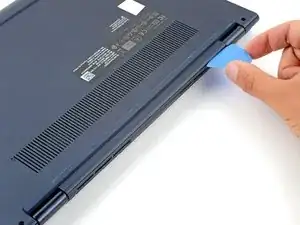

Insert the pick on the hinge edge and slide along the entire edge to release all of the clips.
-
-
-

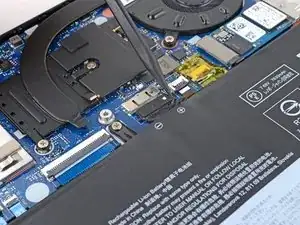

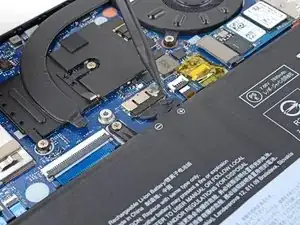

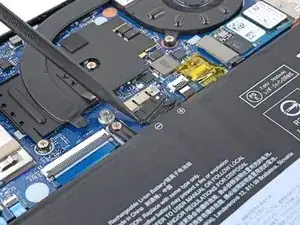

Use the pointed end of a spudger to push each side of the battery connector until it comes out of the socket.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
