Battery Disconnect

Written By: Spencer Day
  • Comments: 0
Battery Disconnect

Difficulty

Moderate

Steps

10

Time Required

No estimate

Introduction

Use this guide to disconnect the battery in your Lenovo IdeaPad 3-15IIL05.

  1. UFQKSEKFTrUTCNlT
    UFQKSEKFTrUTCNlT
    ojdIYlNghLUb5IQL

    • Allow your laptop's battery to drain below 25% before starting this repair—a charged battery may catch fire if damaged.

    • Unplug all cables and fully shut down your laptop.

  2. ZnNFJseZKtCCNknG
    ZnNFJseZKtCCNknG
    eZmKXWwvJ6IvIHcf

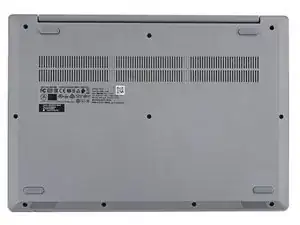

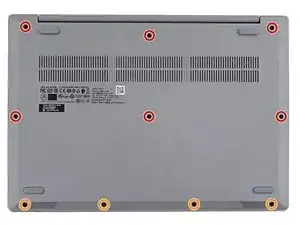

    • Use a Phillips screwdriver to remove the ten screws securing the back cover:

    • Six 7.6 mm-long screws

    • Four 4.7 mm-long screws

  3. vJrWOuSrVqlAFV6B
    vJrWOuSrVqlAFV6B
    jEbo4pcgOIDZY5YB
    rCBwuvSACAAnTFbB

    • Plastic clips secure the back cover to the frame. You'll hear and feel the clips release.

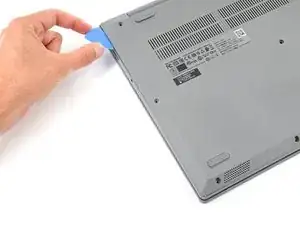

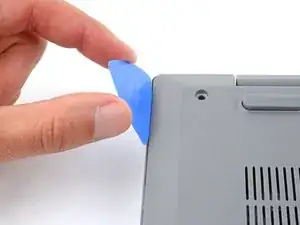

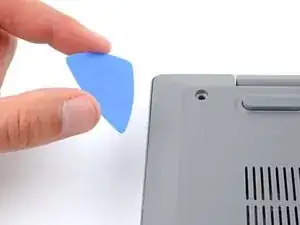

    • Insert the flat side of an opening pick between the top left corner of the back cover and frame.

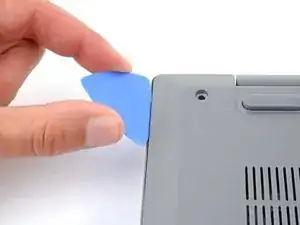

    • Angle the pick down to about 45 degrees.

  4. 3csgksnXIZZcMQWI
    3csgksnXIZZcMQWI
    QONT3j2WHmZAVcjt
    4imbqtXfyxesCIsx

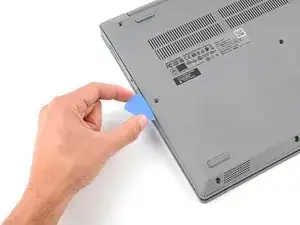

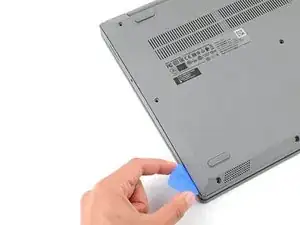

    • Keep the opening pick angled down at about 45 degrees while sliding it along the front and side edges to help release the clips.

    • Slide the pick to the bottom left corner of the laptop to release the left clips.

  5. DnacqGMNkpTik4Nj
    DnacqGMNkpTik4Nj
    IkHZmHOWb4ZBXHYB
    YOeTAIKJCe1fATdJ

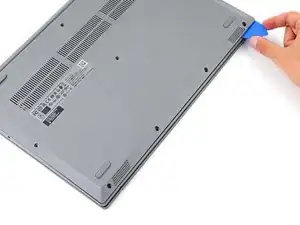

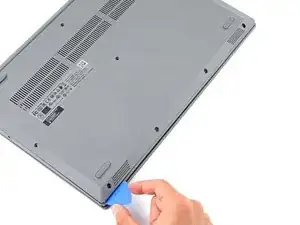

    • Slide the opening pick to the bottom right corner to release the bottom clips.

  6. GnJWLcXNdQsGWnTj
    GnJWLcXNdQsGWnTj
    knIyBFJeR5qFRlyW
    bgrY2QAoxffIW3Ea

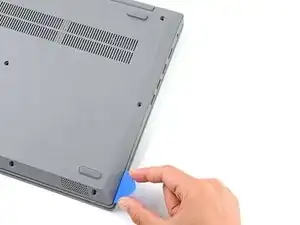

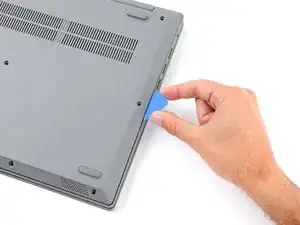

    • Slide the opening pick to the top right corner to release the right clips.

  7. TOsBUZB6TCRTC2Gx
    TOsBUZB6TCRTC2Gx
    ewUZJCnTsxRfG1ZV

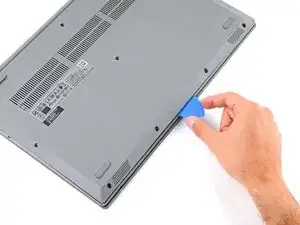

    • Insert the flat end of an opening pick between the back cover and frame, to the left of the right hinge.

    • Pry the back cover up with the pick to release the top right clips.

    • Leave the pick inserted next to the right hinge.

  8. xIcallXGvWWaCmrF
    xIcallXGvWWaCmrF
    hIB2xArvAUXiigHY
    y5yOnggMQPgT6tII

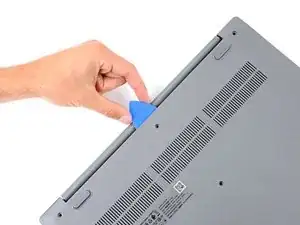

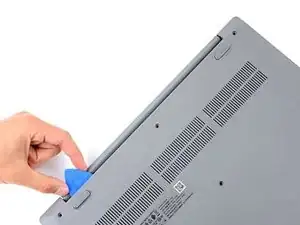

    • Angle the pick up to about 45 degrees.

    • Slide the opening pick to the top left corner to release the remaining clips.

  9. FbVPgaOLKIQw5kng
    FbVPgaOLKIQw5kng
    ja2qAcnTWVnFDAcK
    KgaOckqbtfxXMHwF

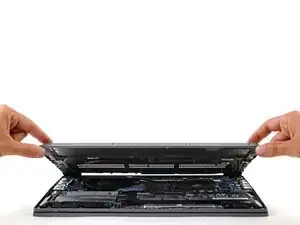

    • Remove the back cover.

    • During reassembly, lay the back cover on the frame and press firmly around the perimeter to engage all the clips.

  10. KrvgHYgkp3hIJ2Wi
    KrvgHYgkp3hIJ2Wi
    lDgGqHIYEayl1Ju3
    gSK5MRhMJplf4fMN

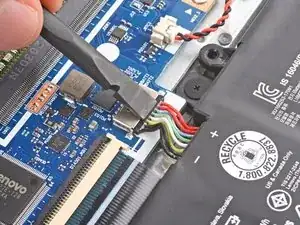

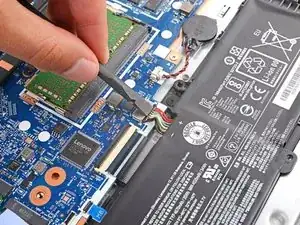

    • Use the flat end of a spudger to gently push the battery connector out of its socket on the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
