Battery Removal

Written By: Alex Diaz-Kokaisl
  • Comments: 0
Battery Removal

Difficulty

Moderate

Steps

10

Time Required

10 - 20 minutes

Introduction

Prereq to removing the battery assembly or the individual battery cells.

  1. UtGCrqmoDE6xLFCZ

    • Before you begin your repair, unplug your UPS.

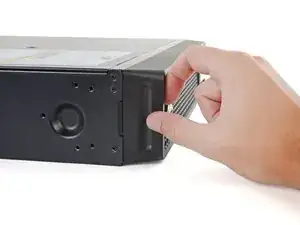

  2. vtZhrKKlUs5rD4xf
    vtZhrKKlUs5rD4xf
    xmtqq6gHPIeYUNnJ

    • Plastic clips secure the front bezel.

    • Pull the left edge of the front bezel away from the device to release the plastic clip.

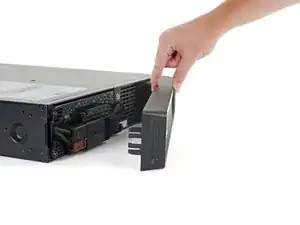

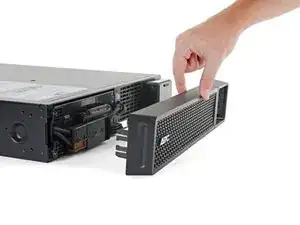

  3. LCfdf3QvyKhO3ZF3
    LCfdf3QvyKhO3ZF3
    CHqY1ipbv5LHGhgG
    4fwjXkxsINSkGuZT

    • Continue pulling the left edge of the front bezel away from the device until the right clip releases.

    • Remove the front bezel.

  4. QelYjVSPWLXDFZBn
    QelYjVSPWLXDFZBn
    425uGqspJLsAJhFc
    re2glQOqigWH3dQH

    • Use the cutout in the battery connector to pull it toward the right edge of the device and disconnect it.

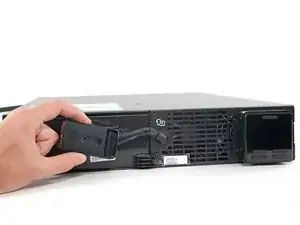

  5. rMXyLdFLtvRkyBK1
    rMXyLdFLtvRkyBK1
    1xCIQDjYiXfOemtQ
    ATFcI1gSOWhb4qis

    • Lift and rotate the battery connector to move it out of the way of the battery assembly.

  6. pyWZtm2dVMCoIVcX

    • Use a Phillips driver to remove the three 23 mm‑long screws securing the battery assembly.

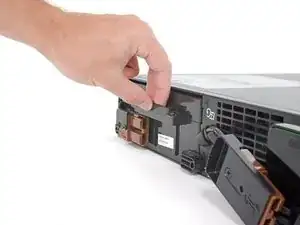

  7. Gjx4nRNmCE2kcufG
    Gjx4nRNmCE2kcufG
    HrR1YKSHyFxxSkMW

    • Pull the battery assembly out of the housing until it stops at its first plastic tab.

    • You'll feel the assembly stop abruptly and hear the plastic tab "click."

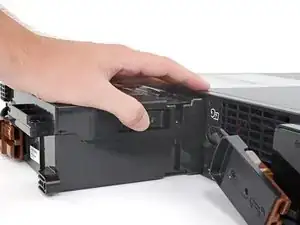

  8. fMB6Or4AfpnZUOkM
    fMB6Or4AfpnZUOkM
    5WOSVFBbWoXXWFuA
    s2l3MVXNuRuo54Ri

    • Depress the plastic tab while pulling on the battery assembly until it clears the tab.

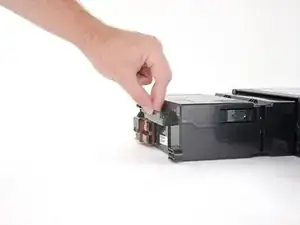

  9. IjNnYLsMgnnXfJ2r
    IjNnYLsMgnnXfJ2r
    RBSZGRCNA43IJtLq

    • Continue pulling the battery assembly out of the housing until it stops at its second plastic tab.

    • You'll feel the assembly stop abruptly and hear the plastic tab "click."

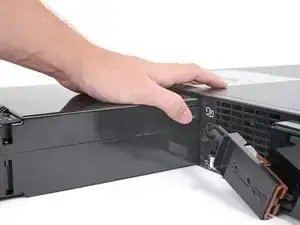

  10. oSi6JoCRDJcf2EZv
    oSi6JoCRDJcf2EZv
    ecjBnjIxKhq5Syjr
    pBXDpKYYY6lMyZO5

    • Depress the plastic tab while pulling on the battery assembly until it’s free from the housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
