Bem Wireless HL2739B Charging base motherboard Replacement

Written By: Ryan McQueeney
  • Comments: 0
Bem Wireless HL2739B Charging base motherboard Replacement

Difficulty

Easy

Steps

6

Time Required

7 minutes

Introduction

Is your charging base not functioning correctly? It's probably the motherboard.

  1. FF3adafRAYWTVOYI

    • Peel the rubber cover back from the corner of the auxiliary charging base to reveal the screw.

  2. 3lmH1LExN4NS5IcI
    3lmH1LExN4NS5IcI

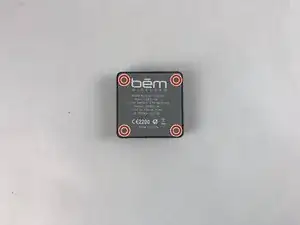

    AxXZApItiCQcVuwS

    • Use the J1 bit attached to the screwdriver to remove the four 10mm screws from the bottom of the auxiliary charging base.

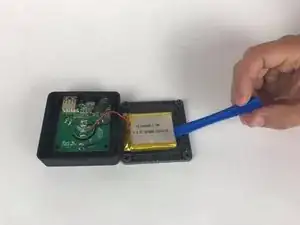

  3. jOnYKcKffxuKLLQa

    • Lift the bottom cover away from the rest of the auxiliary charging base.

    • There are wires connecting the battery and cover to the rest of the auxiliary charging base. Be careful when removing the auxiliary charging base cover.

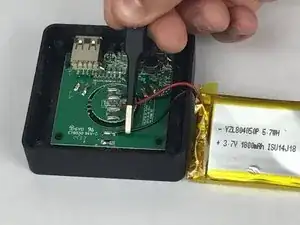

  4. 6QjBQvtlahMG1dTK
    6QjBQvtlahMG1dTK

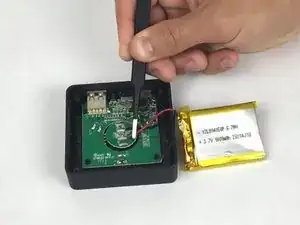

    hUPK4hOV34cg6H2N

    • Using the tweezers, pull the wires from the auxiliary charging base's internal chip.

    • Be careful not to damage the chip when you remove the wires.

    • It will likely require soldering to reassemble the auxiliary charging base after this step.

  5. XKN5dOWHQQsk2YbB

    • Using tweezers, remove the black wire from the motherboard

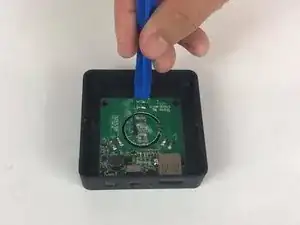

  6. iIfBGPjSOQqQTCHW

    • Using the plastic opening tool, gently pry the motherboard up and remove it from the charging base.

    • There are no screws to be removed from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
