Bissell SpotClean ProHeat 5207U Spraying Mechanism Replacement

Written By: Zachary Chandler
  • Comments: 0
Bissell SpotClean ProHeat 5207U Spraying Mechanism Replacement

Difficulty

Moderate

Steps

5

Time Required

15 - 30 minutes

Introduction

Is your Bissell SpotClean ProHeat 5207U spray trigger difficult to use? It could be because of a failing spray mechanism. Follow this guide to replace the spray mechanism for your Bissell SpotClean ProHeat 5207U.

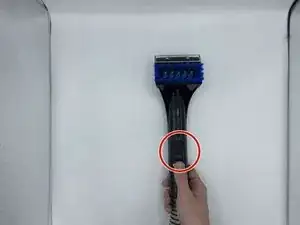

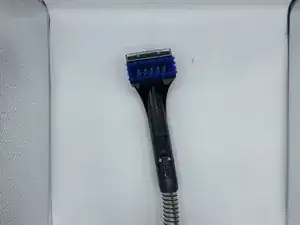

  1. 5idscIiuiZOQgGBV
    5idscIiuiZOQgGBV
    JVoQEvPwSVScMYrW
    exEAswg2Pa62HXsN

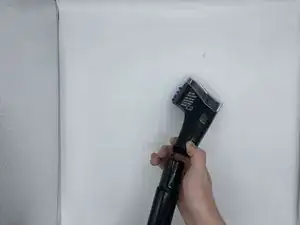

    • Place the brush in front of you and make sure that the brushes are rotated towards the ceiling.

    • Separate the brush from the hose by pressing the lever.

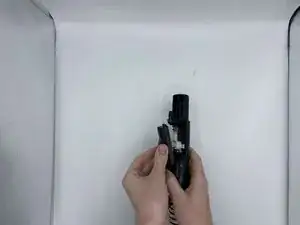

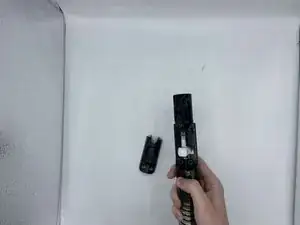

  2. mrqiAHbBtQVKwECK
    mrqiAHbBtQVKwECK
    dMEFnnOZxikb2HNv
    fo4tTLgWx1ohylpD

    • Using a Phillips screwdriver, unscrew the two 12.8 mm screws on the lever cap.

    • Remove the cap on top of the spring mechanism.

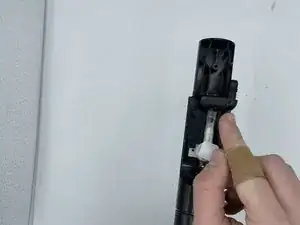

  3. JiQqoF4iMPLUUAcQ
    JiQqoF4iMPLUUAcQ
    Dtc1jE2odeec5QbH
    XfUnXZVQkB3BYTbq

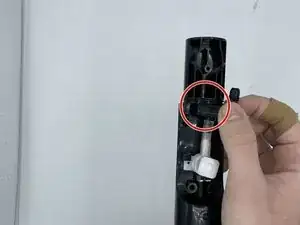

    • Grab the spraying mechanism and separate it from the lever by pulling it back.

    • Rotate the spraying mechanism clockwise to fully separate it.

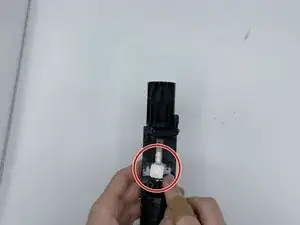

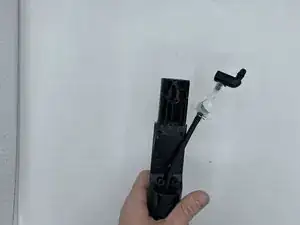

  4. uaRSRNNfMKIoMPyI
    uaRSRNNfMKIoMPyI
    FwVwxmtdG3xGGRV5
    txAMXwX5M5xUZ1Oe

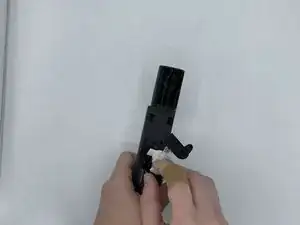

    • Grab the spring mechanism and pull back to fully loosen it.

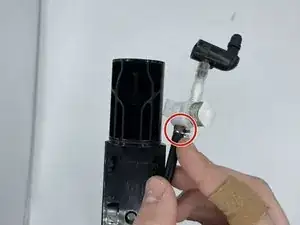

  5. H4dENuUp1Q3kOFcE
    H4dENuUp1Q3kOFcE
    1HlYic2ZKDdlbCZp
    PKRretQyoE2YHncf

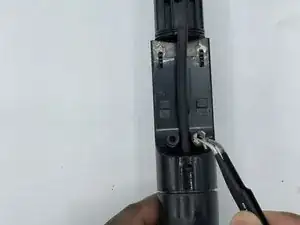

    • Using tweezers, squeeze the hose clamp prongs together to loosen it.

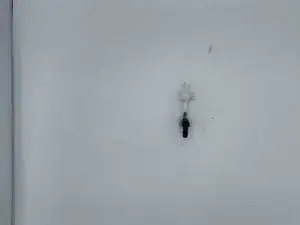

    • As you are squeezing the hose clamp prongs, pull the spraying mechanism out to remove it.

    • Once the spraying mechanism is removed, and squeeze the clamp prongs again and install the new mechanism.

Conclusion

To reassemble your device, follow these instructions in reverse order.
