Black and Decker BL3000S button panel replacement

Written By: Austin Abernathy
  • Comments: 0
Black and Decker BL3000S button panel replacement

Difficulty

Moderate

Steps

12

Time Required

20 - 30 minutes

Introduction

You will need to have completed the prerequisite guides prior to this guide in order to execute it.

  1. XP1pNksXIg1JuZiu
    XP1pNksXIg1JuZiu
    mLjpsoHSZOE3dVUA

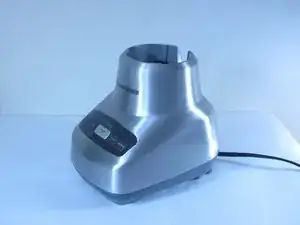

    • Before disassembling the blender base, make sure the blender disconnected from any power outlet.

    • Lift the jar straight up from the base without tilting the jar.

  2. SdajC3TWRuQLTsF1

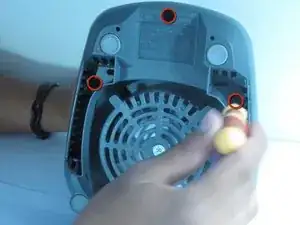

    • Remove the top three 1/4 inch base screws using a Philip's head screwdriver.

  3. OFskxagS5s2sMh1S
    OFskxagS5s2sMh1S
    WkxxOcS5KSCrRQFH

    • Remove the two base leg covers next to the power cord using pliers or a flat-head screwdriver.

    • This provides access to the base screws beneath.

  4. V2qRJCVqgwuJVHQE

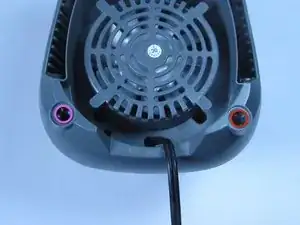

    • Remove the following screws that secure the top and bottom halves of the base.

    • One 1/4 Phillips screw

    • One TA-20 screw

    • Both screwdrivers must have a minimum of a three inch shank (length).

    • Screwdrivers with extenders will not fit down the access holes.

  5. mWFNnbdsILQ6UMoR

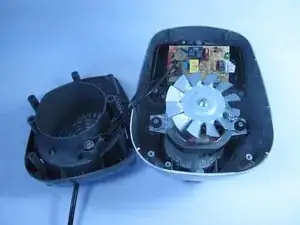

    • Lift the top half of the base from the bottom half of the base to reveal the internal mechanism.

  6. JUSNXWBIarsOKvAC

    • Once you have the base removed, the circuit board should be clearly visible inside.

  7. PTcEaK2MJJHx2HJA
    PTcEaK2MJJHx2HJA
    bvDk2KfGRZcSdLlI

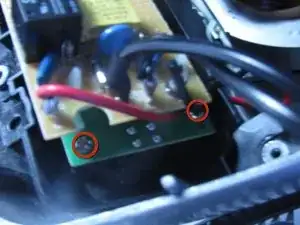

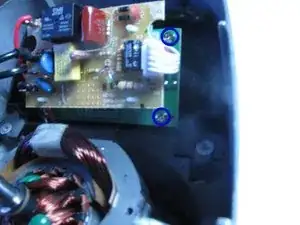

    • Remove the four screws located on the circuit board.

    • Two are on the left side.

    • Two are on the right side.

  8. DIkWkElUUnTuXPZK

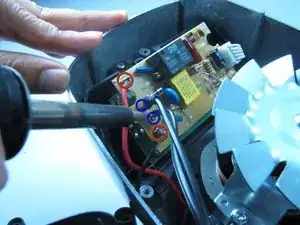

    • Remove the following soldered connections with a soldering iron:

    • Motor wires

    • Power cord wires

  9. JDNQbakZgCSP3qPl

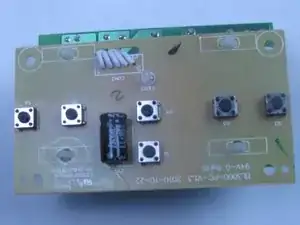

    • Lift the circuit board straight up to remove it from the base.

  10. wQGQlnPAVk21fU1x

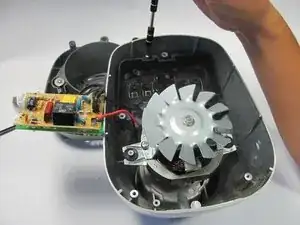

    • Once the circuit board has been freed from its screws it can be moved out of the way to gain access to the buttons.

    • A single screw must be removed from the top as shown.

  11. 4BMVCovCAnoDOJmO

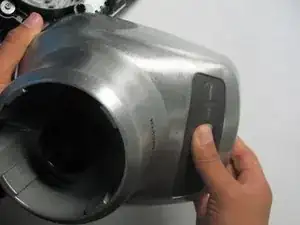

    • Push firmly from the outside of the blender on the face of the buttons to pop it out of its locked position.

  12. YBKTB2rF5JfiQSoU
    YBKTB2rF5JfiQSoU
    dBPSybeJvLPMJLhM

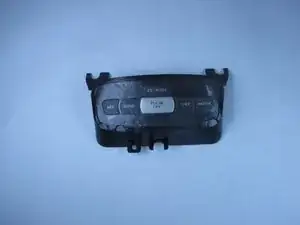

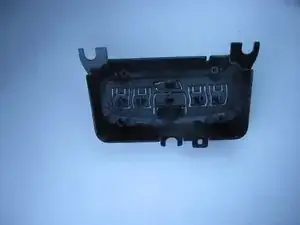

    • Provided is a front and a back view of a functioning button frame from the BL3000S.

    • Check for cracks, bends, debris, or missing extentions and fastens.

Conclusion

To reassemble your device, follow these instructions in reverse order.
