BlackBerry KeyONE partial Disassembly

Written By: raven
  • Comments: 0
BlackBerry KeyONE partial Disassembly

Difficulty

Moderate

Steps

7

Time Required

15 minutes

Introduction

  1. Gyu1TWZbcmYU4xp4

    • Carefully remove the top plastic cover. It is held in place by adhesive.

  2. EIOqEISWOcF41uFk
    EIOqEISWOcF41uFk
    MLlvKYuZGMT2FaRs

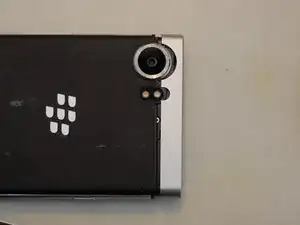

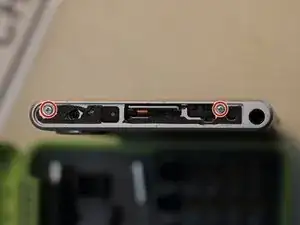

    • Remove the two Philipps #0 screws that hold in place the top of the phone frame and slide it off.

  3. WKGcti1NQE1W4Lkc

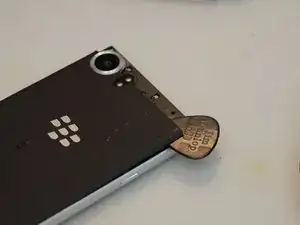

    • Remove the back cover. It mostly just clips off, but has some adhesive in the lower area.

  4. 3JGqAfsXaPi5bCpQ
    3JGqAfsXaPi5bCpQ
    rmCyLR4QPH1lC1RQ

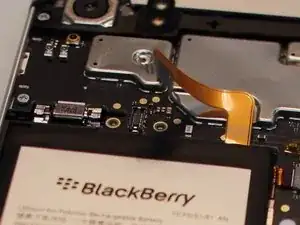

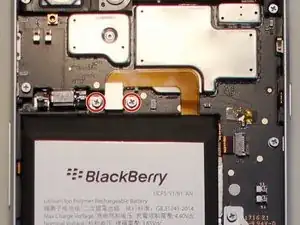

    • Remove the two Philipps #0 screws securing the battery connector and unplug the later.

  5. lOAJmfXjAMJRJ16M

    • Remove the 6 Philipps #0 screws securing the lower cover and remove it.

    • Remove the three Philipps #0 screws holding down the bar that secures the two main lego-style plugs and remove it.

  6. 2OuSfTqLX1RUnEaW

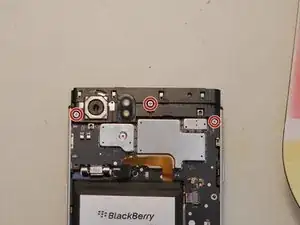

    • Remove the three Philipps #0 screws securing the upper cover and remove it.

  7. RoaWSVH5fxfJ2IBi

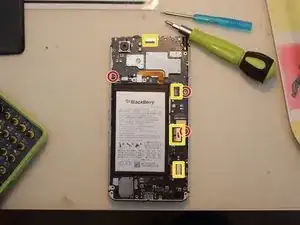

    • Unplug the remaining ribbon cables

    • Remove the last three Philipps #0 screws securing the Motherbard.

    • Now you should be able to replace most components.

    • The screen is held in place from the front by adhesive (or not, in the earlier versions), its cable slides trough the phone to the PCB - It's the large connector in the middle.

    • The battery is glued to the frame firmly. There are three pultabs located underneath the motherboard.

    • Don't forget to remove the sim-tray if you're removing the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
