Introduction

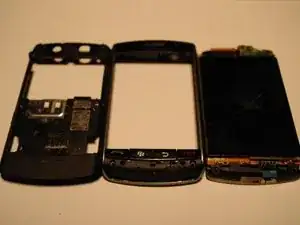

Need to get inside your Blackberry Storm to fix it? Or just want to salvage parts? This is an easy to follow guide to do it!
Tools
-

                  -

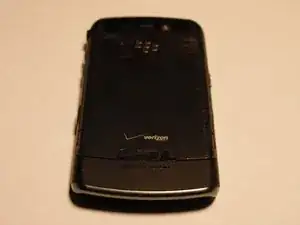

            Turn your Storm where the battery door is facing up.
-
            Remove the battery door.
-

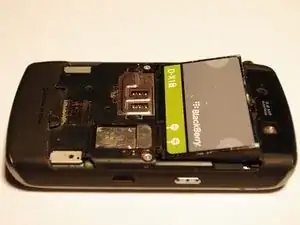

            Remove the battery.

-

-

                  -
            Remove the plastic piece that covers the camera & flash on the back . This is held in with some tape so use a safe pry tool.
-
            Remove the two hex screws underneath it.

-

-

                  -

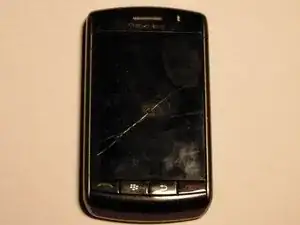

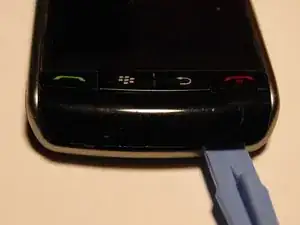

            Turn the phone over and remove the plastic cover under the buttons as shown.
-

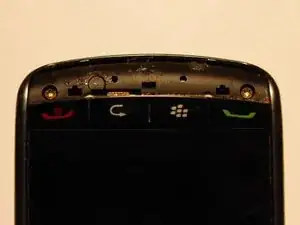

            Remove the 2 screws underneath.

-

-

                  -

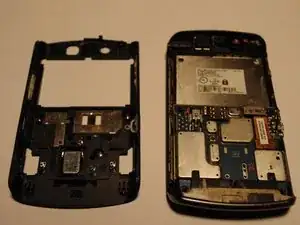

            Go around your device with the plastic pry tool, there a 3 clips on each side of the housing.
-

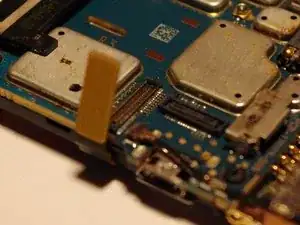

            There is a connection for the antenna from the front to mid housing. Remove it with a pry tool if it does not come off by itself.

-

-

                  -

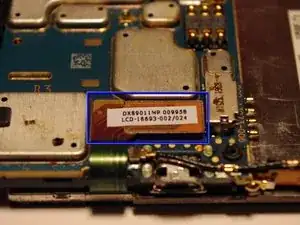

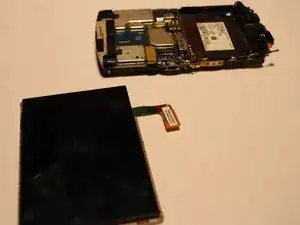

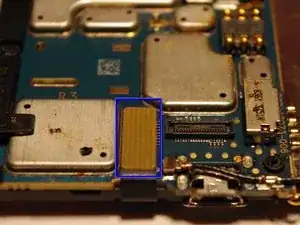

            To remove the main board from the mid housing disconnect the ribbon cable as pictured.
-
            Now follow in reverse order for reassembly!

-

To reassemble your device, follow these instructions in reverse order.
