Introduction
This device contains a 1230 mAh removable/rechargeable lithium-ion battery. This battery offers a talk time of up to 6.8 hours, standby time of up to 13.4 days, music playback up to 50.2 hours, and video playback up to 6.6 hours. A lithium-ion battery can be very dangerous to work with, especially if it is damaged, so use extreme caution while replacing it. Without a battery your device will not even turn on, so it is important to know how to replace it.
-

                  -

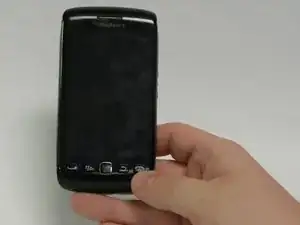

            Power off the device.
-
            Press and hold down the power/end button on the phone until phone powers off and the screen goes black.

-

-

                  -

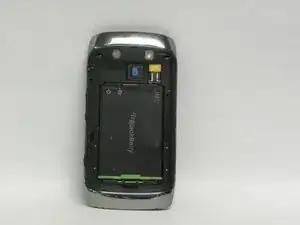

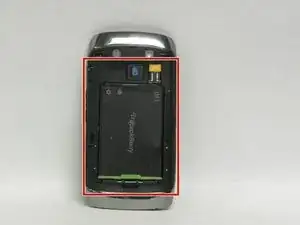

            Remove the plastic cover that would normally be on the back of the phone.
-
            Press down on the release button, which is located on the bottom of the back side of the phone.
-
            Lift up on the plastic covering and remove.

-

-

                  -

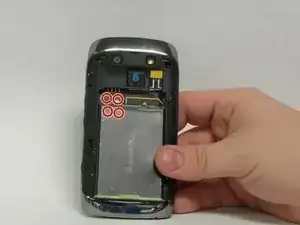

            Remove the battery.
-
            Once the plastic covering is removed, you can remove the battery.
-

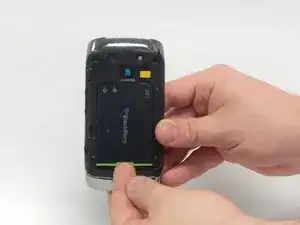

            Use your fingers or a plastic spudger to pop the bottom of the battery out of its place by pushing and lifting.
-
            Once the bottom of the battery has ejected, you can easily remove the whole battery from the phone with your hands.

-

-

                  -

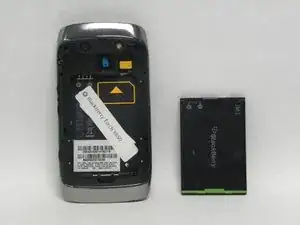

            Inserting a new battery.
-
            Align the plus and minus signs at the top of the battery compartment with the plus and minus signs at the top of the battery.
-
            Push battery into place.
-
            Replace the plastic cover by snapping into place.

-

To reassemble your device, follow these instructions in reverse order.
