Blackberry Curve 9300 Speaker Replacement

Place your Blackberry face down in front of you.

Locate the indent on the bottom of the back cover.

Use your fingernail to lift and remove the back cover.

From the top, use your fingernail to lift and remove the battery.

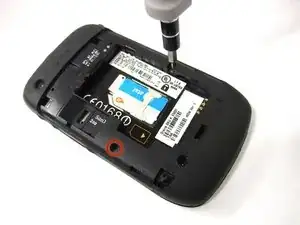

Use the T6 Torx screwdriver to unscrew the two 5mm screws highlighted.

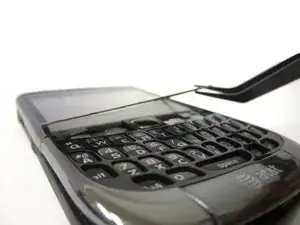

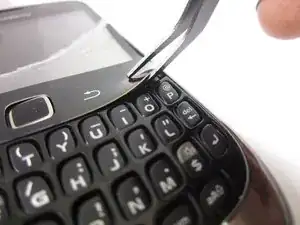

Place the phone face up and use tweezers to securely grip and lift the screen upwards.

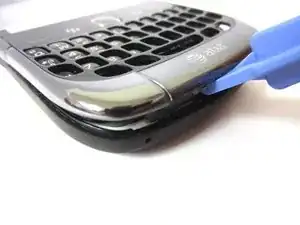

Use a plastic opening tool to lift the bottom edge of the front cover.

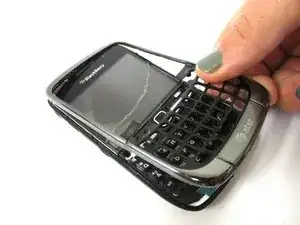

Use your nails to unclip the sides of the frame from the phone.

Lift and remove the frame.

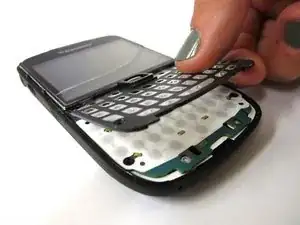

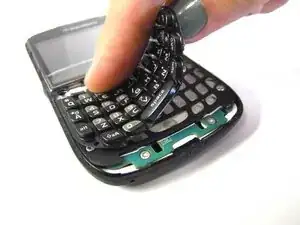

Lift and remove the keyboard.

Locate and remove the two 5mm screws on top of the keyboard base with a T6 Torx screwdriver.

Carefully pull keyboard base up and away from phone.

Disconnect keyboard base from phone completely.

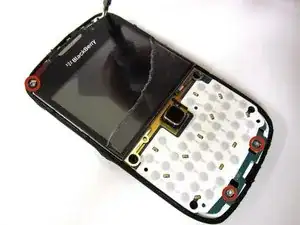

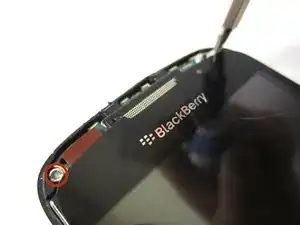

Remove the four 5mm screws on the top and bottom of phone with a T6 Torx screwdriver

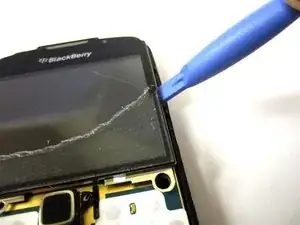

Using a prying tool, find the crease below the screen.

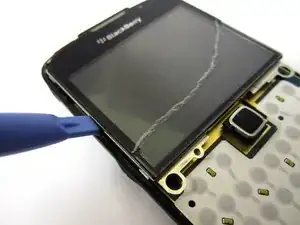

Insert where shown and use the tool to unclip the two sides of screen from body.

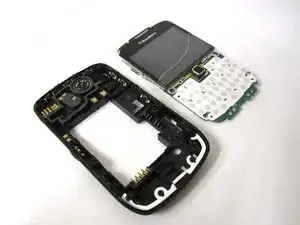

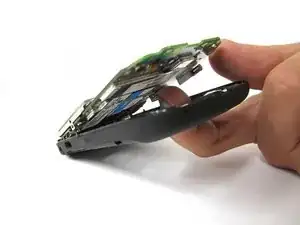

From the back of the phone, use your finger to push the front piece of the phone away from the back piece.

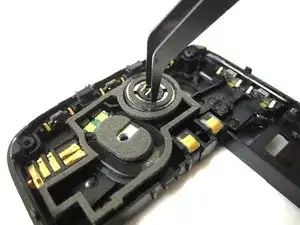

Insert tweezers into the small holes on the top of the speaker.

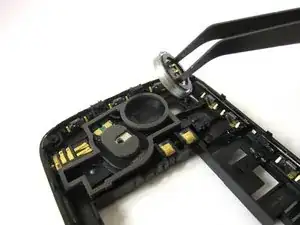

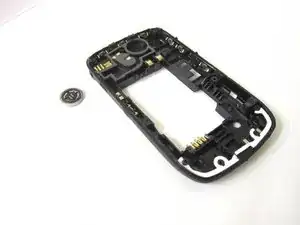

Lift the speaker up to remove the speaker from phone.
