Blackberry RIM 7250 Side Button Replacement

Written By: Noah Eckert
  • Comments: 0
Blackberry RIM 7250 Side Button Replacement

Difficulty

Moderate

Steps

12

Time Required

6 minutes

Introduction

This guide will be useful in replacing the side button for the Blackberry RIM 7250. For this guide, you will need a plastic opening tool and a Torx #6 screwdriver head.

  1. qjHaIrXQpfCTXgTi
    qjHaIrXQpfCTXgTi
    AGyWJEuo4OloQyQo
    3EgAKqbp2D2LTIZ4

    • Push the release button down and away from the device.

    • Slide the cover off toward the bottom of the device, revealing the battery compartment.

  2. LOq3yCW4xCtSewjL
    LOq3yCW4xCtSewjL
    12yRLvUkvEkhYCHU
    CiuqtSQhmiZkR1IT

    • Place your finger in the groove next to the battery.

    • Lift your finger up to eject the battery from the battery compartment.

  3. 5eG2gwgKnUFwL4fQ
    5eG2gwgKnUFwL4fQ
    KHPXG5csHxocjZD5
    mZtibUIJVBolRDMx

    • Remove the battery from the compartment.

  4. l1jLQObp2CRQaicU
    l1jLQObp2CRQaicU
    65vL4keGwONtgJsW

    • Remove the four 10.7 mm Torx T6 screws.

  5. Qk3QsFBHf3vgX6b3
    Qk3QsFBHf3vgX6b3
    MQj3djfDuEGSsyPD

    • Remove the two 5 mm Torx T6 screws.

  6. RbHgrBqpSlqBDHhv

    • Hold the phone with one hand, with the bottom facing toward you.

    • For both clips, insert the plastic opening tool and push away from you.

    • You will hear a clicking sound for each clip that is released.

  7. GTDHOjkVC43QRQY5
    GTDHOjkVC43QRQY5
    1uaefIrYuIIYYQCS
    XyLwEBmTBRkvTVbO

    • Grab the back housing from the bottom and lift the housing away from you.

  8. yUiMCWZODUjuoHFJ
    yUiMCWZODUjuoHFJ
    hLQxcgboGIqpCyTw

    • Place your thumb on the bottom rectangle and your index finger on the top rectangle.

    • Squeeze your fingers together to release the internals from the front housing.

  9. EYjA4REFgX6IMqT1
    EYjA4REFgX6IMqT1
    gbQgpHFSFGNNlJdP
    tRbGM5lm4ZvJ64SX

    • Pull the two pieces apart to separate the front housing from the internals.

  10. M1yIXlXGsSKgcfwc
    M1yIXlXGsSKgcfwc
    qFRKPd23aovfr3R5

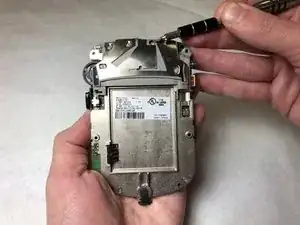

    • Remove the single 5 mm Torx T6 screw.

  11. 5bnOgEYdh4xugIxQ
    5bnOgEYdh4xugIxQ
    rkBXRs25ASfiDRlY
    HBb3NgxscXdamEpD

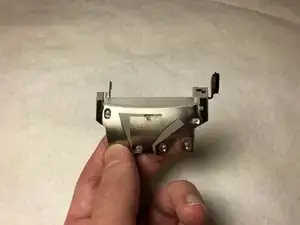

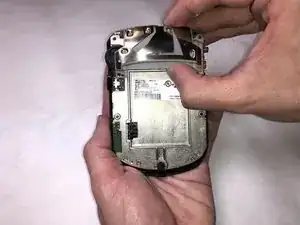

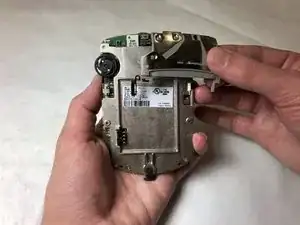

    • Grab side button housing with your thumb and index finger.

    • Remove the side button housing from the internals.

  12. PlRXaPQVcijUTTVv
    PlRXaPQVcijUTTVv
    tdokdlGIZZCmuKFf
    bmJtNOIZwwXJj2kJ

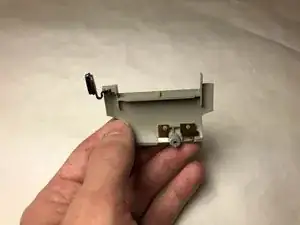

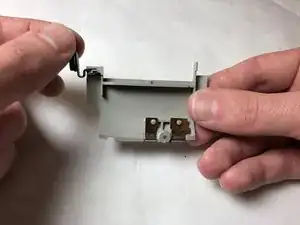

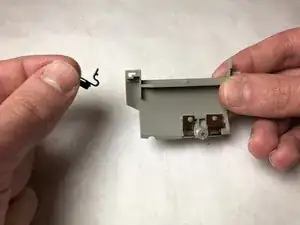

    • Hold the side button housing with one hand and hold the side button with the other.

    • Lift the side button from side button housing.

    • There will be a subtle click when the side button is detached from the side button housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
