Blackberry Torch 9810 Motherboard Replacement

Written By: Jocelyn Adorno
  • Comments: 1
Blackberry Torch 9810 Motherboard Replacement

Difficulty

Moderate

Steps

9

Time Required

20 minutes

Introduction

  1. fW56hTX5W3upc6ZG
    fW56hTX5W3upc6ZG
    L316XmwJda1NZcF4

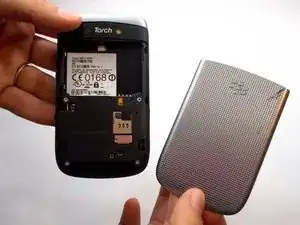

    • Remove the back cover of the phone

  2. QfxJ1KPqcZayGnQB

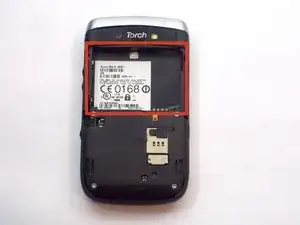

    • Remove the battery

  3. mqHQfycKuJG2ML5a

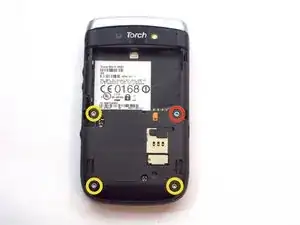

    • Unscrew the four screws using the T6 screw driver

    • If you remove the screw in red, you void the warranty!

  4. HEZbXBgSTISwRhK4
    HEZbXBgSTISwRhK4
    3HRsasLLKDNYD1FS

    • Remove front silver trim by using plastic opening tools and wiggle it off.

    • This is difficult to remove, but it should come off if you do it with caution.

  5. gSqo34kLG1LYexqt

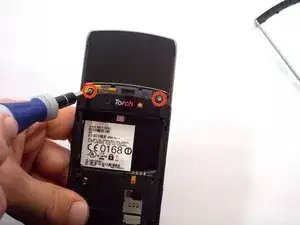

    • Once you remove the rim cover, you should find two more screws on the top. Unscrew them using the T6 screw driver.

    It opened using a T7 screw driver for my mobile at this step

    ershanu -

  6. hK4FlpcCVy1GaV1d
    hK4FlpcCVy1GaV1d
    1hJxhGqGiLFZJTth
    ORkYWGgpZeDRQwLf

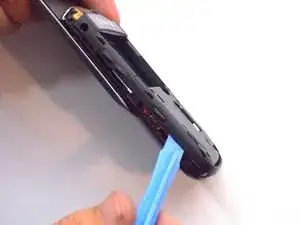

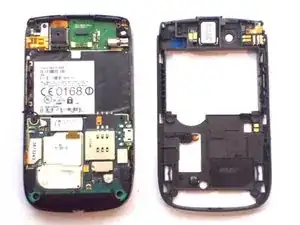

    • Use the plastic removal tool to remove the entire back cover.

  7. XoKaH2Ro5xSPXghw

    • Unplug the black antenna wire from the logic board.

  8. CaTV6s1PDMwroUnM
    CaTV6s1PDMwroUnM
    2yGJkLp5WKIydSHI

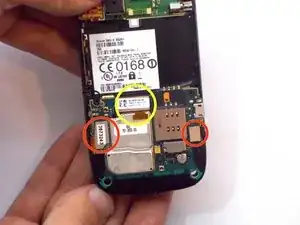

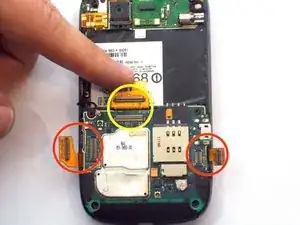

    • Peel off the three ribbon cables

    • They are orange and located on each side as well as on the top of the logic board

    • The cable circled in yellow is glued to the silver cap. Pull the ribbon cable upward towards the battery area.

  9. eLLA6TT5moGq4Oi3

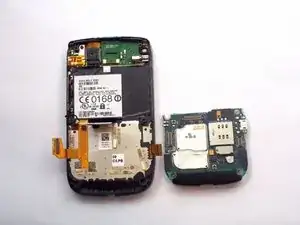

    • Take out your logic board

Conclusion

To reassemble your device, follow these instructions in reverse order.
