Blackview BV9200: Motherboard Replacement

Written By: DegenFixer
  • Comments: 0
Blackview BV9200: Motherboard Replacement

Difficulty

Difficult

Steps

15

Time Required

45 minutes - 1 hour

Introduction

A motherboard replacement guide for the BV9200.

If you already know how to disassemble it or have already followed my disassembly guide, skip to step 7.

  1. ZaZI4QlhsZZx4CTj

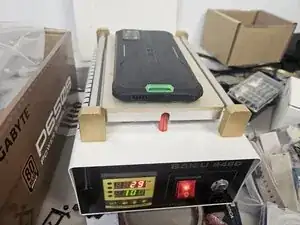

    • Begin by heating the LCD. I use a heating pad set to 100 Celsius, and let it heat for 3-5 minutes.

    • If you don't have such a tool, you should be able to use a heat gun. Just heat the edges of the screen.

    • I would not recommend trying to get the screen off without heating the glue.

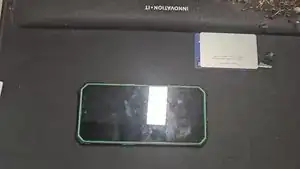

  2. Consider using a more appropriate tool than a part of a box cutter blade to initially separate the LCD from the frame. (I would've tried using iFixit's Jimmy, but I haven't got it yet)

    • Consider using a more appropriate tool than a part of a box cutter blade to initially separate the LCD from the frame. (I would've tried using iFixit's Jimmy, but I haven't got it yet)

    • Be very careful if you use a part of box cutter blade. You could easily tear the LCD's cables or scratch the underside.

    • Be careful not to separate the LCD and touch panel. When removing the glue with a plastic card, either go underneath the LCD as well or only on the edges of the touch panel.

    • The video is sped up to fit within the 30 second limit. Do it slower and more carefully.

  3. pyr1rFaEifq2LvnU
    pyr1rFaEifq2LvnU
    Dwf2mFMBKZYpbO5U
    AVFkmEAkgIxojXw3

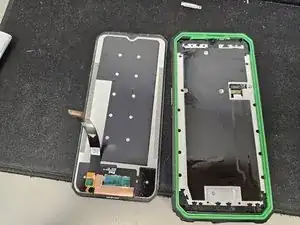

    • Unscrew the screw, remove the tab, unplug the LCD and pull it off.

    • I use tweezers to get the little tab that covers the connector out.

  4. 2lZjxkTANKoix6dl
    2lZjxkTANKoix6dl
    yaJtweVg4L2QIaDb

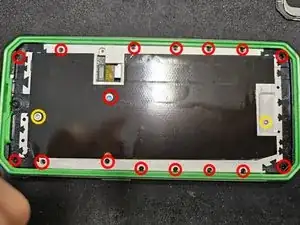

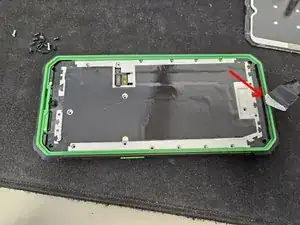

    • Many screws.

    • Ones circled in red are all the same size, and ones circled in yellow are the same size as the one which held the tab that covered the LCD connector.

    • After you remove the screws, get leverage on the bottom. You will see a small indent where you can squeeze a tool in.

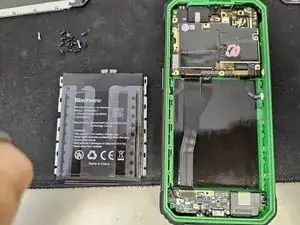

  5. gENLFkFDUARFsuqR
    gENLFkFDUARFsuqR
    fQNOcqQWhe45YAOP
    DMMjNTYu25gHDFfp

    • Remove the cover.

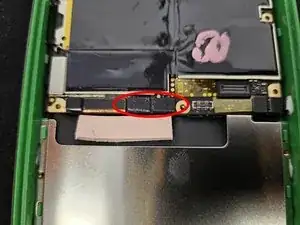

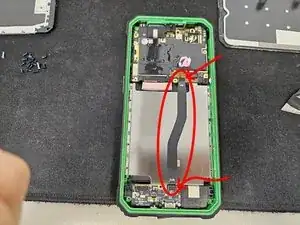

    • Remove the cable. Connectors are pointed at by arrows.

    • Disconnect and remove the battery.

    • The battery is not glued or screwed in. Simply grab a hold of it and lightly pull it out.

  6. 1cYFcLCqRwdPGZwS

    • Meow.

  7. puUdRcspMiEQQDyY

    • Remove the connectors, the cameras and the screws that are pointed to.

    • Tweezers or plastic cards work well for removing connectors here.

  8. qTTAILpcIuMUpAge
    qTTAILpcIuMUpAge
    aEJLU2KIbZ3QSNLD
    qhIxx4Yc4oxglpuc

    • The motherboard assembly is held in place by 2 latches. Get it unlatched.

    • Once you have it unlatched, pull it slightly towards you, then bend it over so you can see the underside.

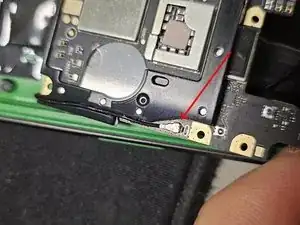

    • Disconnect the data cable.

    • Be careful when doing this, as these cables are fragile and it is very easy to tear their heads off.

  9. aMtHjBtZ5CjLKIAD
    aMtHjBtZ5CjLKIAD
    TYsMIAvClQnBZBPW

    • The plastic housing is held in place by 2 latches and a screw we removed in step 1.

    • After you get it apart, remove the cameras from the motherboard.

  10. TppZNjZVsVy4KYA3
    TppZNjZVsVy4KYA3
    A4LHnTrmdubyPllq

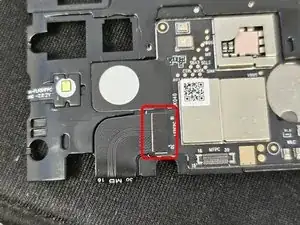

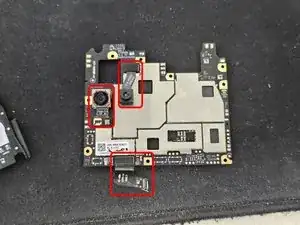

    • Take the connector off the auxiliary PCBA that is found on the housing.

    • Attach the MB side on the new motherboard, then attach the cameras.

  11. JBNx5AgSF3lAUkfW
    JBNx5AgSF3lAUkfW
    hVHOMr64VdfQBRNB

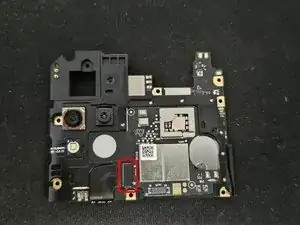

    • Reattach the connector on the auxiliary PCBA.

    • Attach the data cable.

    • This wasn't outlined in the previous steps, but detach the data cable from the USB board to make these and following steps easier.

  12. 6srkFjEqrSlCiOAR

    • Meow.

  13. Hsf5g4GXBXRZvQo1
    Hsf5g4GXBXRZvQo1
    L3tBFsDSyEtKOxou
    Cr4KtgTE5VapPGoj

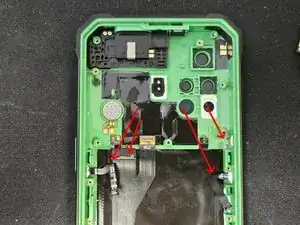

    • Move the cables out of the way.

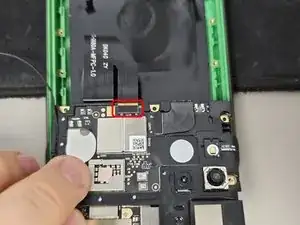

    • Attach the bottom part of the cable that is connected to the USB board.

    • Attach the top part of the cable.

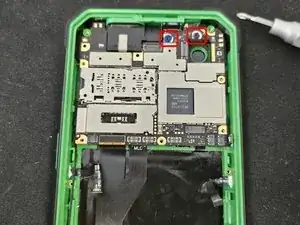

  14. UJChlh5fePXWvqsI
    UJChlh5fePXWvqsI
    mCJZZeYwKqfQkNRL
    MXwNiABpj1GWhWmU

    • Screw in the screws.

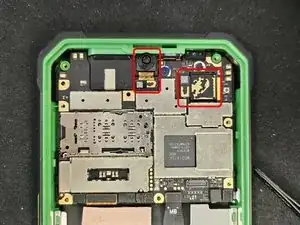

    • Attach all the connectors, and the cameras. Then, insert the battery and attach it. Lastly, add the final connector between the USB board and motherboard.

    • Do not forget to re-attach the data cable.

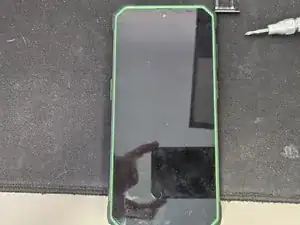

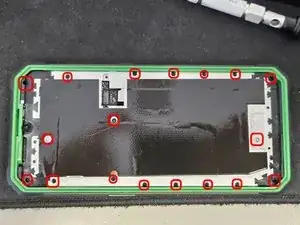

  15. OnufY12kg4AtsFx4
    OnufY12kg4AtsFx4
    EAAlDHRrSfOPtSmo
    OkWFyIDVP3OGvlc3

    • Reinsert the cover panel, and screw in the screws.

    • Attach the LCD connector and cover it with the tab.

    • Glue the screen to the case.

Conclusion

Make sure to use good glue to preserve waterproofness and dustproofness of the product.
