Bosch MFQ 36440 Disassembly

Written By: Stanky
  • Comments: 3
Bosch MFQ 36440 Disassembly

Difficulty

Moderate

Steps

4

Time Required

5 minutes

Introduction

  1. luL4KEMpAEnuAwDQ

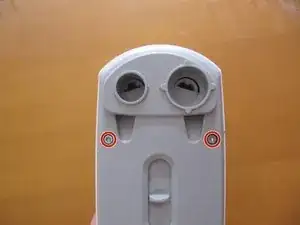

    • Remove 2x Torx screws (size 10) on the front

  2. B3wqr2Br3kNkUfe1
    B3wqr2Br3kNkUfe1
    3wcBFcirKaSWtD5D

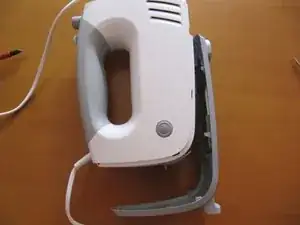

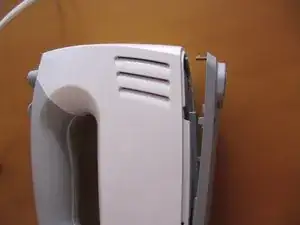

    • Remove the front cover

    • Gently push downwards the cover, then pull it through the holes

    • Once it is detached at the top, slide the entire gray cover down

  3. C36RmNr5aNUCf1wG
    C36RmNr5aNUCf1wG
    IrQEgPZUVV1uMmYn
    BXCcLQ1SJSVaaOVY

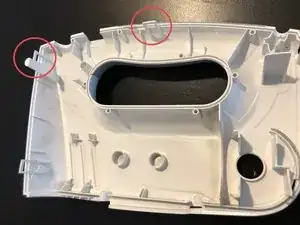

    • The first step is somewhat tricky. Use a long screwdriver to release the first part at the top.

    • Continue your way all around the case.

    • The clip on top front is tricky a long and thin flat screwdriver is needed

    • The clip on very top is impossible to release you need to pry the two half’s carefully apart until the top releases

    They Have Updated the design to have 2 clips on top instead of the 2. They have also reinforced them.

    Swiftninja -

  4. lP4MMAEY3s5WOYKb
    lP4MMAEY3s5WOYKb
    SZKiTfIm3VQ4PeOJ

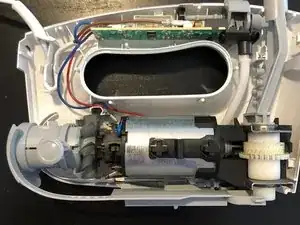

    • Prop everything back into the half without the clips

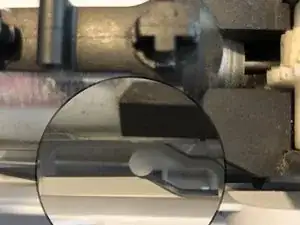

    • Take care about the safety cam to be aligned in the cover

Conclusion

To reassemble your device, follow these instructions in reverse order.
