Bosch Maxx WFL2455 Washing-Machine Front panel disassembly

Remove the cover hiding the drain hole.

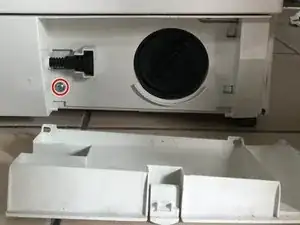

Remove the T20 Torx screw which is holding the lower cover.

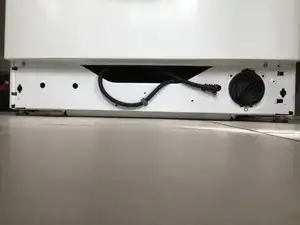

Remove the lower cover by sliding it to the right.

Remove the detergent dispenser by opening it then by pressing on the notch with your finger.

Remove the ring holding the drum gasket.

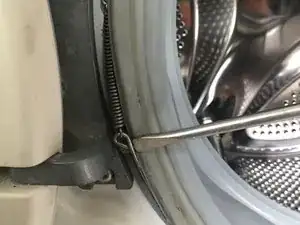

Start with the spring located near the window hinge.

Insérez ici votre traduction

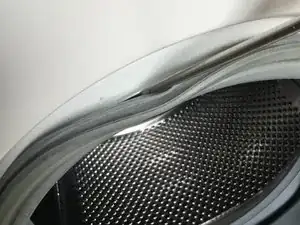

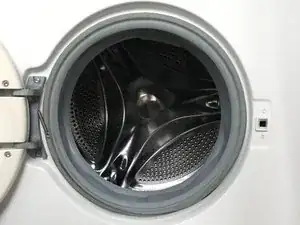

Move the gasket to the inside of the drum so that it won't bother when you'll be removing the front panel.

Remove the two T20 Torx screws located below the front panel.

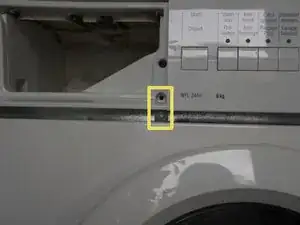

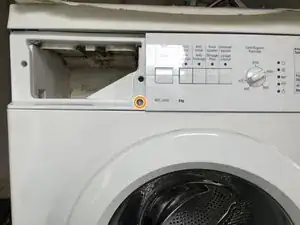

Remove the T20 Torx screw located in the detergent dispenser slot.

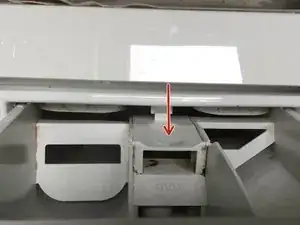

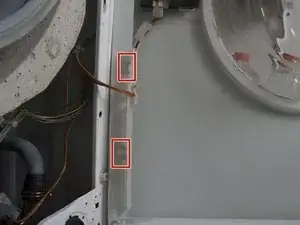

The front panel is held in place by a strip, held by the previously removed screw of the detergent dispenser slot.

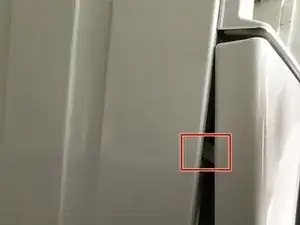

To remove the front panel, start by sliding it downwards (it should normally fall under its own weight).

Insérez ici votre traduction

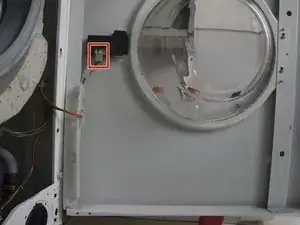

There's an electrical connection between the body of the device and the front panel (probably a window sensor).

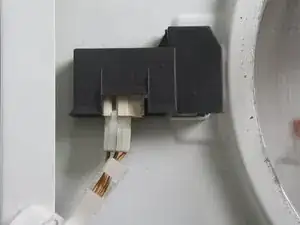

Disconnect the window sensor by lifting the connector's tab and by pulling it down firmy.

Remove the guide from the front panel.

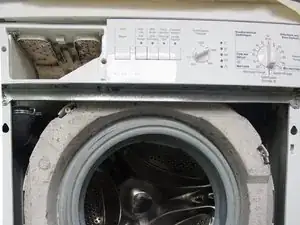

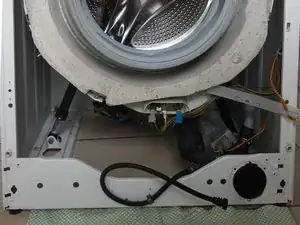

And voila, the front panel is disassembled!
