Bose SoundLink III Charging Port Replacement

Written By: Dakoda Sanders
  • Comments: 28
Bose SoundLink III Charging Port Replacement

Difficulty

Moderate

Steps

13

Time Required

15 - 20 minutes

Introduction

If you notice any major damage to your charging port that prevents you from charging your device, you may need to replace your charging port.

  1. bUNBr4SekJWplwle

    • Use a spudger to pry the rubber pads off of the bottom panel of the SoundLink.

    • The rubber pads should have enough adhesive to stick when you reassemble them at the end. If not, however, you may need your own adhesive.

  2. UMSaX2WQCLuCOhOg
    UMSaX2WQCLuCOhOg
    SUyg4GFcpKKRCVUf

    • Remove the two 12.5 mm screws using a Phillips #2 screwdriver.

    • These screws may be difficult to remove. If necessary, use a lever for extra torque.

    • Remove the bottom panel.

    easy peasy. great instructions!

    couple things: 1. you dont need to remove the rubber pads completely; just enough to get the screws in & out. 2. if you get a small screw driver with the battery, its crap. use your own.

    thank you ifixit for another great tutorial.

    scott

    Scott Oakley -

    My SL III battery lasted nearly 8 years with almost daily use—but recently stopped holding a charge for more than 15-20 minutes. Replacement was super easy so thanks for posting. Bose quality is exceptional as always!

    hoya -

  3. eMZkUBaYKZ4miSjq

    • Flip the rear panel back to allow access to the SoundLink's battery.

  4. pRIlRrX3TBsYfpOU
    pRIlRrX3TBsYfpOU
    XBynsAYsJKXWGCLO

    • Remove the two 12.5 mm Phillips #2 screws from the sides of the battery.

    Super Erklärt!!

    Ralf s -

    You do not have to remove the rubber completely. Just lift up the ends towards the middle to reveal the screws.

    bart -

  5. dktExM3nPHjDjMXJ

    • Gently peel back the adhesive padding on either side of the inner back panel.

    • The adhesive for these pads is powerful, but you may require new adhesive if the original begins to fail.

  6. eMDcIsIgeVjRBOKX
    eMDcIsIgeVjRBOKX
    XIIKTCZNfely3PNN

    • Remove the four 12.5 mm Phillips #2 screws mounting the outer case.

    • Slide off the outer case.

  7. StMlnGCFUA6MxSMP

    • Remove four screws from each of the four speakers (16 screws total) using a Torx #10 screwdriver.

    • All screws (excluding the two middle screws on the right side) are 12.5 mm in length. The aforementioned middle screws are 21 mm.

  8. fEuNKuQCwLHxQ2vx
    fEuNKuQCwLHxQ2vx
    lteioWIO2VjKLPjT

    • Remove the two 12.5 mm screws which mount the top panel using a Phillips #2 screwdriver.

    • Now you should be able to lift the top panel off.

  9. usqhEFhWfLIfnDBl
    usqhEFhWfLIfnDBl
    3prdOeg2XkEYwNdk

    • Use a metal spudger to pry the device apart. You must use a metal spudger because of the great force necessary to pry it apart.

    • The circuitry for the buttons on the top panel may be found underneath, so use caution not to damage it.

  10. svOPOjYFLWrpRnPN

    • Remove the 12.5 mm screw mounting the motherboard using a Philips #2 screwdriver.

  11. OZmGLknXIK1OCUHl

    • Gently disconnect the three cables connected to the motherboard.

    • Remove the motherboard from the device.

  12. FNBoTfWfrCFI4x2L
    FNBoTfWfrCFI4x2L
    uoUsftbQOOhBoVnA

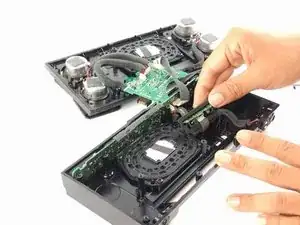

    • Remove the two 12.5 mm screws on either side of the charging port using a Torx T10 screwdriver.

    where can I get/buy the charging port for a Bose SoundLink III ?

    Maritza Manchester -

  13. 5ldMT1NInFdIBGpo
    5ldMT1NInFdIBGpo
    VCNyPYGsHOGOVefU

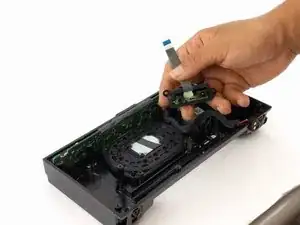

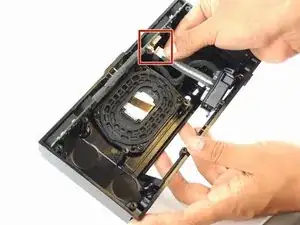

    • Gently unplug the cable connecting the charging port.

    • Now the charging port should be fully detached and ready for replacement.

    Great video. I need to change the aux port. Where can I buy one?

    rmorin04 -

    I need to replace my aux port as well… were you able to replace yours? is the charging port and aux on the same piece?

    Alejandro -

    had any luck with the aux port, I also need a new one

    paul -

    were you able to repair yours?

    Alejandro -

    Any luck with the aux port?

    Miguel Angel Jimenez Palacios -

    where can you buy there replacement charging port at? I have checked many website and no luck!

    lbgohorns -

    Any luck finding charger replacement port it’s a flawed design I’d take a couple of them for firer repair as well

    -Wayne -

    Cannot find board with replacement parts

    Glenn Rooks -

Conclusion

To reassemble your device, follow these instructions in reverse order.
