Introduction
Hard drive failed? Want to increase the storage capacity? This guide will help you open the Linkstation.
Notes:
1) I tried to replace the standard 500 GB hard drives with SSD items, it was not succcessful; the unit would not initialise.
You need to therefore buy the SSD version if you want the latest technology.
-
-
There are two catches to release on the front face.
-

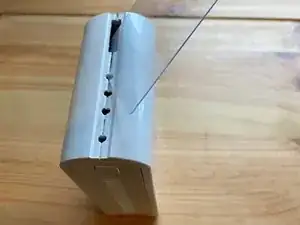

Using the iFixit opening tools, insert the first blade between the long opening and the first hole.
-
The second blade should be inserted between the third and fourth holes
-

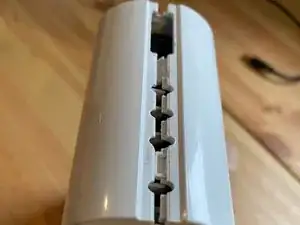

Gently manipulate the tools to disengage the catches.
-

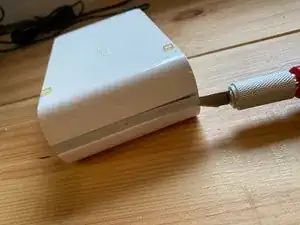

Open the case wider to be able to get the ifixit tools in the gap on the side of the unit - go to the next step.
-
-
-

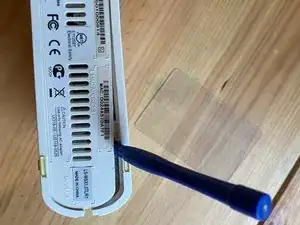

The first catch is next to the rubber foot. Insert the tool under the lip and lift the side to disengage the catch
-
The second catch can be found at the beginning of the vents, use the same technique to open the catch
-

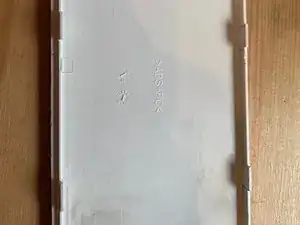

Repeat the steps on the opposite side and the lid will come off.
-
-
-
Pull the until out of the case, there are no catches, it is simply held in.
-

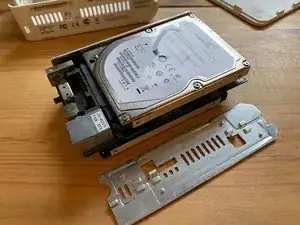

Place the unit on it's side and remove the metal plate that is clamped to the board.
-

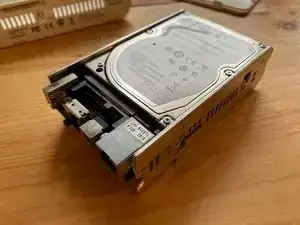

Turn the unit over the remove the second plate.
-

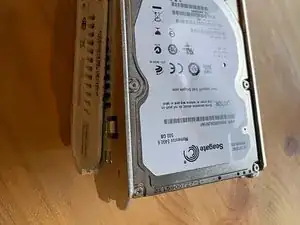

The hard drives can now be removed.
-
-
-

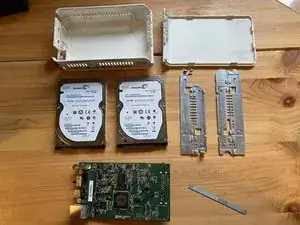

The unit is now disassembled, assembly is simply done in the reverse order.
-
When reassembling the unit, pay attention to the orientation of the metal plates.
-
To reassemble your device, follow these instructions in reverse order.
4 comments
I have the 2x1TB version and DID manage to successfully replace HDD's with SSD's! I only had 500GB SSD's and don't recall having any problems (but it was years ago though). I do have a number of downloaded utilities, including TFTP Boot Recovery (presumably from Buffalo website) so it's possible I had to use this (too long ago to recall)!
I need the TFTP Boot Recovery files. Have you the files?
Thanks to all...I opened it without breaking anything thanks to you.
Put an an initialised but unformatted SSD in slot #2 and it is seen by the device but upon formatting it says "failed to operate disk. please resummit after restart". When I insert a regular HDD this message does not appear. Any idea?
