Introduction
This guide tells you how to remove and repair or replace the LCD screen and the glass screen in your viewfinder.
Tools
-

                  -
            Orient the camera so that the back button panel and viewfinder are facing you.
-
            Push the "Battery Release" button to the side and hold.

-

-

                  -
            While holding the battery release button to the side, slide the battery towards you, past the release button.

-

-

                  -
            Reorient camera so that the playback button panel and empty battery slot are facing you. The edge of the LCD screen should be facing you.
-

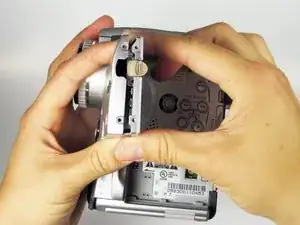

            To open the screen, hold the open button shown down and flip the screen open.
-

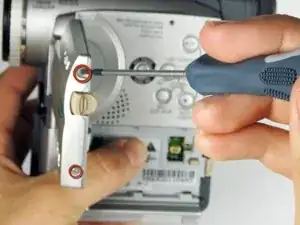

            Remove the two #00 Philips 4mm screws on the outer edge of the LCD casing.

-

-

                  -
            Flip the screen counter-clockwise and reorient the camera with the bottom edge of the LCD screen facing you.
-

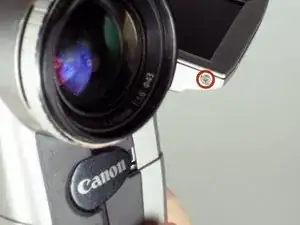

            Remove the 4mm #00 Phillips screw from the bottom of the LCD casing

-

-

                  -

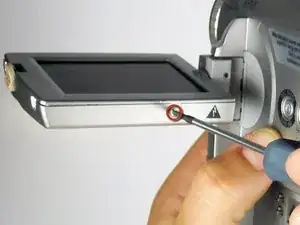

            Remove the two 4mm #00 Phillips screws on the inside edge of the LCD casing. After removing the first screw you will have to rotate the screen 180 degrees to remove the second screw.

-

-

                  -
            Reorient the camera with the LCD screen edge and playback button panel facing you.
-

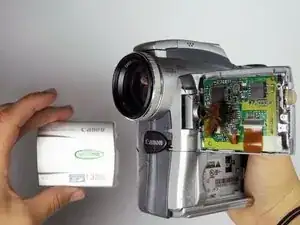

            Remove front panel of LCD screen by pulling it directly to the side.

-

-

                  -

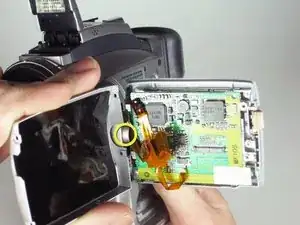

            Disconnect the screen components from the main body of the camcorder by applying downward pressure near the circled hinge.

-

-

                  -

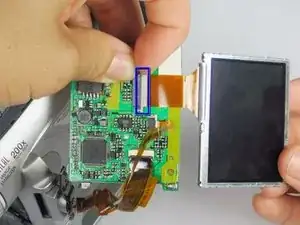

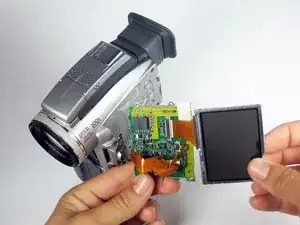

            Remove the glass screen from the LCD by lifting up on the cream colored hinge to disconnect the ribbon wire. Pull the glass screen away.
-

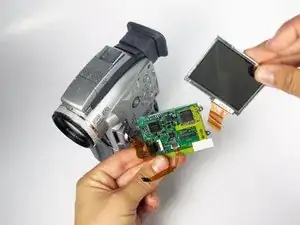

            Replace the glass screen if it is cracked or damaged.

-

-

                  -

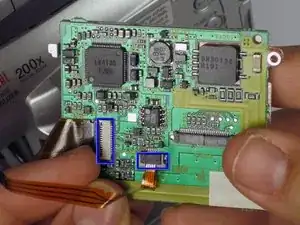

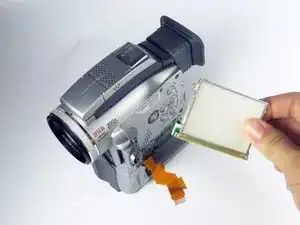

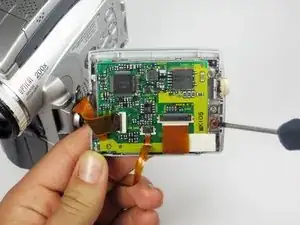

            Remove the LCD by disconnecting the remaining two ribbon wires by lifting up the cream-colored gate and sliding the ribbon out of the black gate.

-

To reassemble your device, follow these instructions in reverse order.
