Canon PowerShot S500 AV Port Replacement

Written By: Nathan Balcom
  • Comments: 0
Canon PowerShot S500 AV Port Replacement

Difficulty

Difficult

Steps

25

Time Required

45 minutes

Introduction

This guide describes how to clean or remove a corrupt AV or USB port.

  1. yr4wGKRoEcweCqHn
    yr4wGKRoEcweCqHn
    NFiLm2w2KepDwXCo

    • Unscrew five Phillips screws using a #0 Phillips screwdriver.

    • One screw is on upper right corner of the back panel.

    • The other four screws are on the bottom of the camera.

  2. 1aONmQcCCtcU2bxm

    • Open the memory card cover by moving the slide switch toward the top end of of the camera.

    • Remove the memory card from the slot.

  3. dRI3b2iVwBMgtrc2

    • Remove the rear cover from the rest of the camera.

    • This may require gentle rocking of the case to free it.

  4. pYp5X1UKWUQlFLqO
    pYp5X1UKWUQlFLqO
    AN2ANMDqUhrrLUgt

    • Unscrew the four Phillips screws from the side of the casing and one screw from the bottom using a #0 Phillips screwdriver.

  5. qsRQAKt1XvVhEQG2

    • Free the front cover from the rest of the camera.

    • The cover may require gentle rocking to remove.

  6. gtSAdRAIepHqQSQu

    • Unscrew two Phillips screws above the LCD using a #0 Phillips screwdriver.

  7. V3BuwYQwGOLfblEP

    • Gently separate the top of LCD from the rest of the camera using your thumb.

    • Be careful not pull the LCD too far because of the ribbon cable connection.

    • Place the Spudger in the hole of the electrical ribbon.

    • Gently pull the ribbon down using the Spudger until it is free from the camera but still connected to the LCD.

    • The LCD will still be connected to the rest of the camera

  8. AZIDD6PhUC12WOy5
    AZIDD6PhUC12WOy5
    PQqLoWknDrDnfsbE

    • Unscrew single Phillips screw with a #0 Phillips screwdriver.

    • Free the bottom panel and attached ribbon from the rest of the camera.

    • Be careful not to damage the ribbon.

  9. McDVTb2SLydfvmYj

    • Turn over the camera.

    • Lift the clear plastic from the face of the camera, peeling the adhesive just below the zoom lens.

    • The plastic will still be connected on the left side.

  10. tUlZGaIF5BQiEKiX

    • Place the Spudger between the orange ribbon and the black ribbon gate.

    • Lift the ribbon gate using the Spudger.

  11. DnGDYiERC4yEQ1tk

    • Place the Spudger in the corner of the ribbon above the hole.

    • Remove the ribbon from the ribbon gate by pulling the Spudger away from the gate.

  12. AgiyWaBRx14PKdEq

    • Free this ribbon and the bottom panel from the rest of the camera.

    • Be careful not to damage the ribbon.

  13. OQNJBNUTCTeV6nBj

    • Turn the camera over so you can see the LCD.

    • Remove single Phillips screw below the LCD using a #0 Phillips screwdriver.

  14. PkmHkwbQcmIMmStx

    • Lift the blue ribbon gate using the Spudger.

  15. 5hGUJIx5lWZarwa3

    • Insert the Spudger into the hole of the ribbon.

    • Move the Spudger away from the gate to fully remove ribbon.

    • Be careful not to damage the ribbon.

  16. lRqPM2msyYCMVEjp

    • Lift the LCD away from the rest of the camera.

  17. TKkUa1ZoZLexjvPY
    TKkUa1ZoZLexjvPY
    WxbqXlkVbINmLGtw

    • Lift off the capture button by wiggling it back and forth while pulling upward.

    • Be careful not to damage the two clips.

  18. ulgOu2BaRFhCSeQQ
    ulgOu2BaRFhCSeQQ
    QU1rVOMVFOqhesIB

    • Flip open the four ribbon gates using the Spudger.

    • Gently pull out the ribbon cables from the gates using the Spudger.

  19. tPw2TQ4RaiZHTeYS

    • Unscrew the four Phillips screws using a #0 Phillips screwdriver.

  20. MG3VTAPD1EEhid2J
    MG3VTAPD1EEhid2J
    LcpMyOmijpxeFyxJ

    • Gently lift the logic board.

    • Be careful not to pull too hard and damage the white ribbon cable.

    • Place the Spudger so that it is between the logic board, the white ribbon cable, and the rest of the camera.

    • Remove the white ribbon cable by pulling the Spudger away from the camera, keeping it parallel to the logic board.

  21. FGFNTJZqpljeXKCt

    • Lay the logic board back down so that it is resting on the body of the camera.

    • Pull the two plugs (white and green) out to the right from the logic board using the tweezers.

  22. HSBSWCY1WmlUeTVT
    HSBSWCY1WmlUeTVT
    2xPVwGh2uVYbOAnR

    • We're now ready to begin the desoldering process. You'll need a soldering iron, solder, and desoldering wick. You should be able to find these items at a Radio Shack if you don't already have them.

    • Please do not perform this step if you are not comfortable or have previous experience with soldering. Doing so, could cause severe damage to your camera.

    • Desolder the two soldered ribbon cables attached to the logic board.

  23. iXMpou2teFjRXeLt

    • Free the logic board from the rest of the camera.

  24. T6NhbhaV2UKrOGVc

    • Pick up the Logic Board

  25. RVRnLWQoYGLvHuAY
    RVRnLWQoYGLvHuAY
    rXB66vKSTZarqY3D

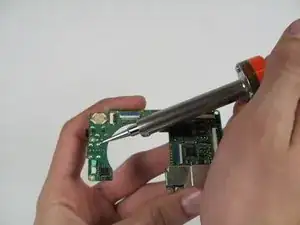

    • Blow the Particles out of the AV Port or USB Port using compressed air.

    • If the pins are damaged or missing, flip over the logic board and desolder the component from the logic board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
