Casio FX-991EX Battery Replacement

Written By: FarmYard Gaming
  • Comments: 1
Casio FX-991EX Battery Replacement

Difficulty

Easy

Steps

4

Time Required

2 minutes

Introduction

The Casio FX-991EX can malfunction if the battery is discharged, even with solar power. Thankfully, replacing it is a simple job.

  1. iMfQM2MBYXRsWGQr
    iMfQM2MBYXRsWGQr
    h5WUXn2wkdgIZLWs

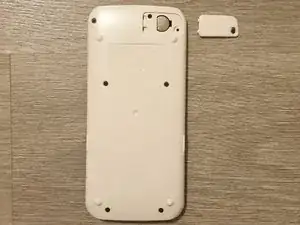

    • Remove the battery cover's screw using a Philips #0 screwdriver.

  2. EbkLGdxJhOdJEbGr
    EbkLGdxJhOdJEbGr
    nFfZ4Co4W22SXoQr

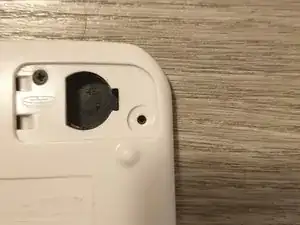

    • Use a spudger to remove the battery using the gap to the right.

    • Don't use sharp objects that may cause harm or damage. The battery can be hard to pop out, but will do so. Dispose of a damaged battery via an e-waste collection site.

  3. KYH2CjU6xDlHmPru
    KYH2CjU6xDlHmPru
    42YAF2HfejsDRshd

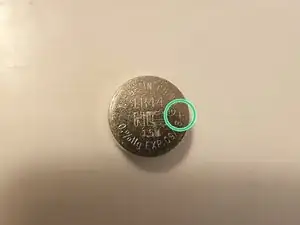

    • The FX-991EX uses a 1.5V LR44 battery.

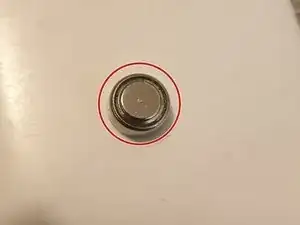

    • Slot the new battery into the compartment. Ensure that the positive side (with writing) faces up...

    • And the negative side faces the calculator's screen.

  4. iaQYUr5uKcOnVCy6

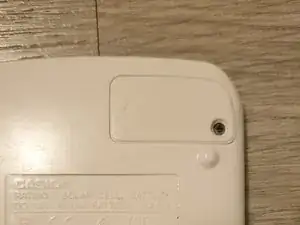

    • Slot the battery cover back on and screw it down.

Conclusion

If you need to reset the calculator after this, it's SHIFT+9 > 3 > =.

Otherwise, you're ready to crunch numbers again!
