Casio G’zOne Commando 4G LTE Volume Buttons Replacement

Written By: Brett Boehm
  • Comments: 1
Casio G’zOne Commando 4G LTE Volume Buttons Replacement

Difficulty

Easy

Steps

9

Time Required

20 minutes

Introduction

  1. 2KMfvF3EwLOdLrZV
    2KMfvF3EwLOdLrZV
    k5WUgCmNdm54ZcpL

    • Using the Phillips #00 screwdriver remove the front and back 5.0 mm screws as shown in the picture.

    • There are four screws in the back and two screws in the front.

    First picture here is hard to see.

    Dan Brown -

  2. PS3nDHehJpnueWGs
    PS3nDHehJpnueWGs
    bXWv52FouKqomAkX
    aWIYhnvU63Yvpea4

    • Gently remove the side cover from the phone by lifting up on the corners as shown in the picture.

    • Press down on the screen to help remove the plastic side cover from the phone.

    • Make sure to push gently because the frame is fragile.

  3. fhOaKYApvvbnclwO

    • Pull the side front cover off the face of the phone.

  4. YTn3IpjSWP4XVOdQ
    YTn3IpjSWP4XVOdQ
    jiLWjEAutQb3Y1Bn
    PZTLjARG6vnFefUO

    • Remove the eight 2.5mm Phillips #00 screws in the holes of the casing.

  5. kMC5d1tjiu13RUiS

    • Gently pull off the motherboard cover.

  6. 5UjRtMD3IPcXQJd6

    • Using the Phillips #00, remove all 2.5 mm screws attached to the motherboard.

    • Do not touch the integrated circuits in the motherboard.

  7. ZoMmQUfxZHVxQM64
    ZoMmQUfxZHVxQM64
    hYTnBj1CtOJvtbmq

    • Gently remove the motherboard with the spudger.

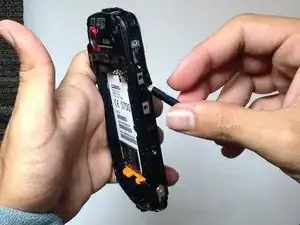

  8. eKfZnHaY5sUxuEsb
    eKfZnHaY5sUxuEsb
    Ts2c2nH5CVUGWaRT

    • Following step 4 in the prerequisite guide, remove the volume pads located on the side of the phone with a gentle pull.

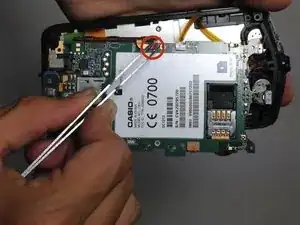

  9. 25JiMCcFGmpLAHNP

    • Following step 6, remove the adapter connecting the volume buttons to the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
