Cen-Tech Seven Function Digital Multimeter Dial Replacement

Written By: Anna Kihm
  • Comments: 0
Cen-Tech Seven Function Digital Multimeter Dial Replacement

Difficulty

Moderate

Steps

7

Time Required

10 - 15 minutes

Introduction

If the dial is stuck in any particular position it will be necessary to replace. This guide will show how to locate and replace the dial.

  1. ZsHeYidKPtSFMstZ

    • Place the meter face down, and the back panel and screws can be seen.

  2. JnTOIqhAV2qtskAK
    JnTOIqhAV2qtskAK
    nZh2ppKdJQ65IAUO

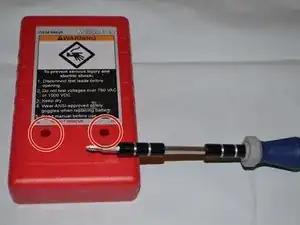

    • Unscrew the two 9mm screws on the back panel using a #0 Phillips screwdriver.

  3. U3OHqXdYCavDOSX3

    • Remove the back panel of the device by lifting upward.

    • Remove the battery from the meter before continuing.

  4. bNmABCeqtISWFd6u
    bNmABCeqtISWFd6u
    GHsa62cSUIiPtTT1

    • Remove the four 7mm Phillips screws holding the circuit board in place.

  5. 4CmblrvOXjHF3r6B

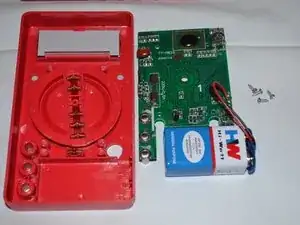

    • Gently lift the circuit board away from the device casing.

    • Remove the battery after removing the back cover to reduce the chances of short-circuiting the circuit board.

  6. EVGAFg4KXcMWHxDE

    • The dial is located in the central part of the device.

  7. 5oWoHADLYYo2eZtl

    • Carefully remove dial from device by lifting upward.

    • Clean existing dial or replace if necessary.

    • Take care not to lose the small ball bearings.

Conclusion

To reassemble your device, follow these instructions in reverse order.
