Chromo Inc. T2 Motherboard Replacement

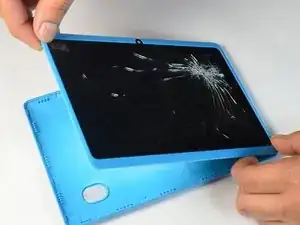

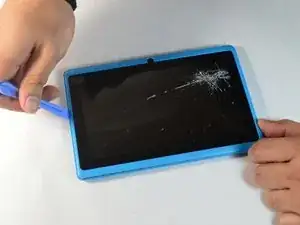

Place your Plastic Opening Tool between the screen and the case. Slowly move it around the casing while prying in a downward motion to undo the hinges holding the two together and separate the two parts.

After separating the case and screen, turn your screen face down so you can see the internal parts!

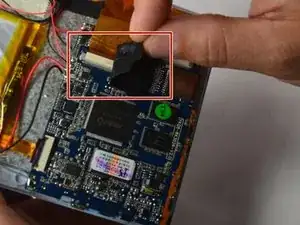

Peel back the tape holding the big flex cable in place.

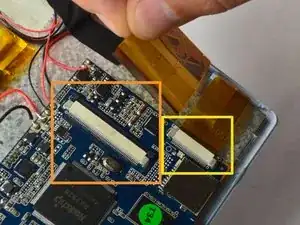

Using your plastic opening tool, gently push back the gray connector to free the flex cables and then pull them out.

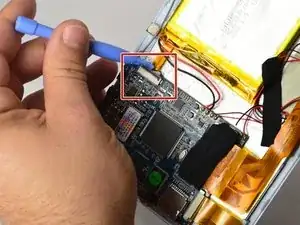

Using the small plastic opening tool, gently push the gray connector back to unlock the flex cable.

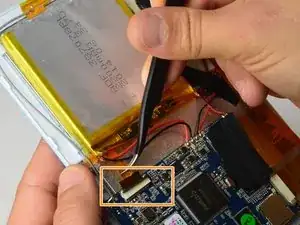

Using a pair of tweezers, gently grasp the flex cable and disconnect it from the connector.

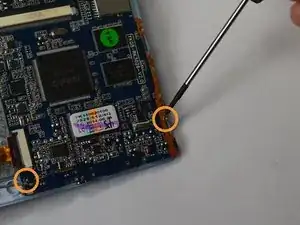

Using a Phillips #00 Precision Screwdriver, remove the three 3mm screws holding the motherboard.

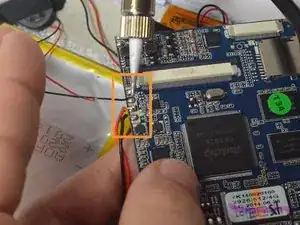

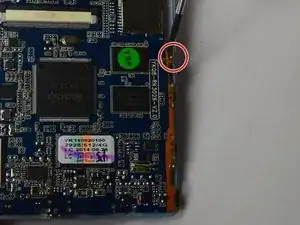

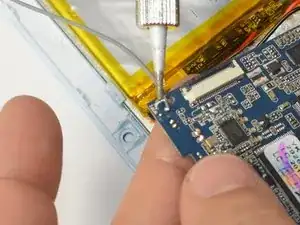

Using your soldering iron, desolder the six wires on the side of the logic board.

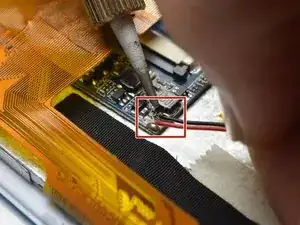

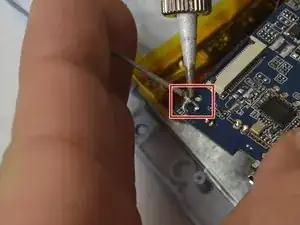

Using your soldering Iron, desolder the grounding cable on the motherboard.

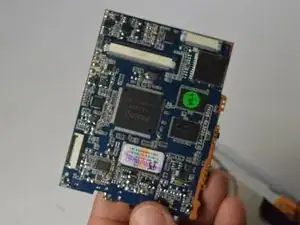

Your motherboard is now ready for replacement!
