Classen Sod Cutter HSC18AHD 2018 Lower V-Belt Replacement

Written By: Sam Omiotek
  • Comments: 0
Classen Sod Cutter HSC18AHD 2018 Lower V-Belt Replacement

Difficulty

Moderate

Steps

17

Time Required

1 - 2 hours

Introduction

Follow this guide to replace the lower V-belt on a 2018 Classen Sod Cutter model HSC18AHD.

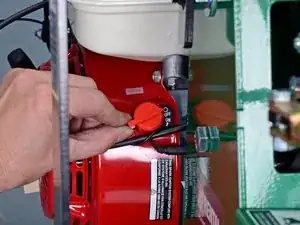

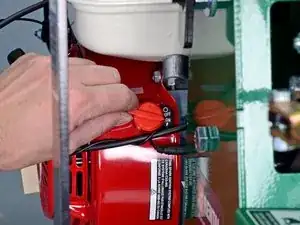

  1. 5R51rpeBCID1Ylcm
    5R51rpeBCID1Ylcm
    Ua3XgdqBZphRcuMF

    • Make sure the engine is off and cool to the touch before you proceed.

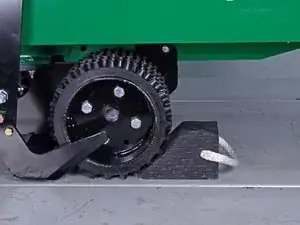

  2. LEDQcVLuJnOHVEGQ

    • Place wheel chocks against the roller and rear wheel to prevent the machine from moving.

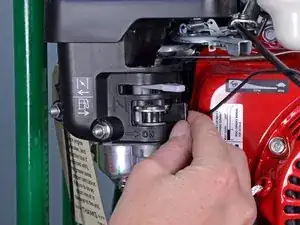

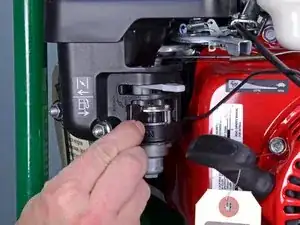

  3. 2DV3qBu1nDeKwS6y
    2DV3qBu1nDeKwS6y
    GXPy6GNkQFSRBawK

    • Flip the gas shutoff switch next to the motor to the left into the off position.

  4. s52JhZLLpWSNPVpF
    s52JhZLLpWSNPVpF
    H44OwOfpdqNcCfmA

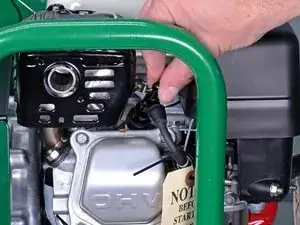

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

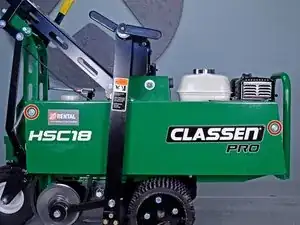

  5. DIGVGwLtFFTbZGeC
    DIGVGwLtFFTbZGeC
    Lcg45uFsRug4TtCR

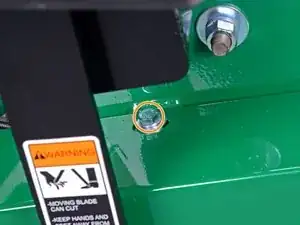

    • Use a 1/2 inch socket to remove the first two bolts from the belt shield.

    • Use a 1/2 inch socket to remove the third bolt from the belt shield.

  6. OiqAReFQXcZxRRHN
    OiqAReFQXcZxRRHN
    hrX2B4orCkiHX2Y4

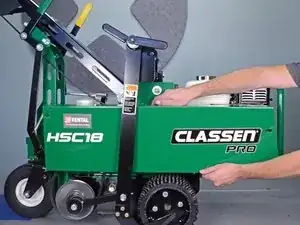

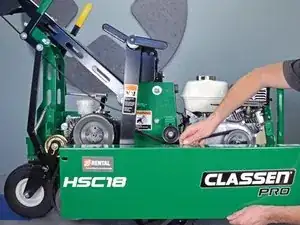

    • Remove the belt shield.

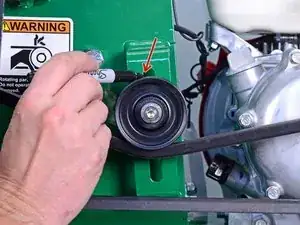

  7. M1YHvcV1QVtnPabA

    • Use a marker to mark the height of the idler pulley on the bracket.

  8. XAZHwFWQWHGnhJFQ

    • Use a 9/16 inch socket to loosen the nut securing the idler pulley until the pulley can freely move up and down the bracket.

    • You may need to use a 3/8 inch wrench in combination with the socket wrench to hold the bolt in place.

  9. wqJH1AFTN2mlnNTq

    • Raise the idler pulley to relieve the tension from the V-belt.

  10. uRNG2cDVHV4XJjPV

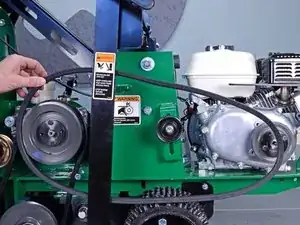

    • Remove the V-belt.

  11. pw6NSNO22EYemPYd

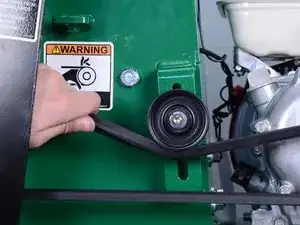

    • Check that the idler pulley is properly tensioning the belt:

    • Use your fingers to roll the belt. If you cannot twist the belt more than a quarter turn, the belt is sufficiently tensioned. If the belt is too loose, set the idler pulley lower to tension the belt more.

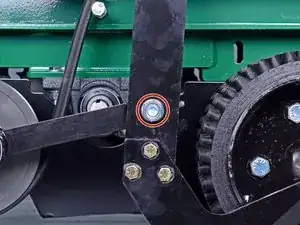

  12. Cexc1IDqGSUEuyjS

    • Use a 3/4 inch socket to remove the bolt securing the eccentric arm to the blade arm.

    • You may need to use a 3/4 inch wrench in combination with the socket wrench to hold the nut in place.

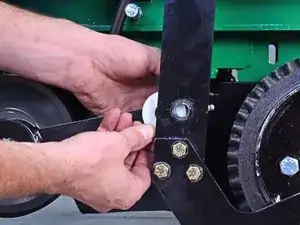

  13. DHtiohsSjtjhsP2U
    DHtiohsSjtjhsP2U
    eyNbWcWJXh3sV1D1

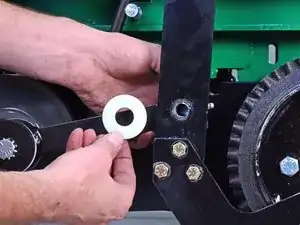

    • Remove the plastic washer from in between the eccentric arm and the blade arm.

  14. WLvSvvvGIKVpnOsa

    • Remove the partially threaded bolt and plastic washer.

    • During reassembly, apply threadlocker on the bolt threads.

  15. nPSgFwW3hgSFJ5Vw

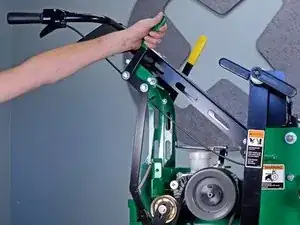

    • Move the cutter blade handle back to disengage the blade drive and relieve tension on the V-belt.

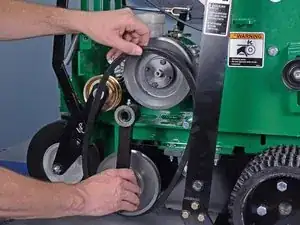

  16. LHTG6FolQwlbFWHI
    LHTG6FolQwlbFWHI
    PKr4qawONrjgQ2Zp

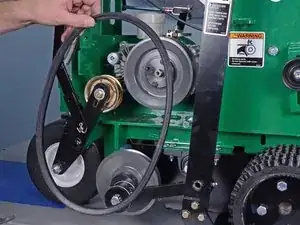

    • Lift the eccentric arm to open a space to remove the V-belt.

    • Remove the V-belt.

  17. htixeNoe3QGu5oEi

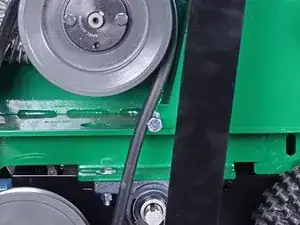

    • When installing the new V-belt, ensure it is placed to the left of the bolt as pictured.

Conclusion

To reassemble your device, follow these instructions in reverse order.
