Introduction
Follow this guide to replace the upper drive chain on a 2018 Classen Sod Cutter model HSC18AHD.
Tools
Parts
-

                  -
            Grab the plastic housing at the end of the spark plug wire.
-
            Pull firmly to disconnect the wire from the spark plug.

-

-

                  -
            Use a 1/2 inch socket to remove the three bolts securing the cutter blade on the left side of the machine.

-

-

                  -
            Use a 1/2 inch socket to remove the three bolts securing the cutter blade on the right side of the machine.

-

-

                  -
            Carefully tilt the sod cutter on its side.
-

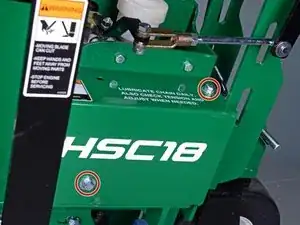

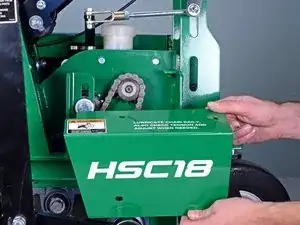

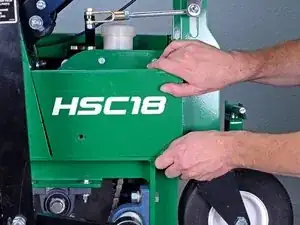

            Use a 9/16 inch socket to remove the nut securing the chain guard.

-

-

                  -

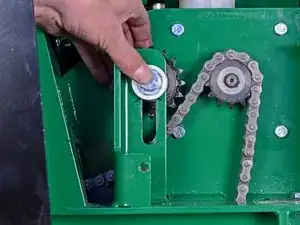

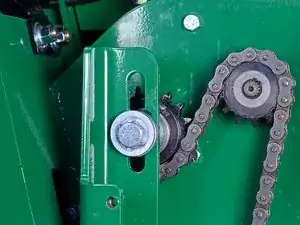

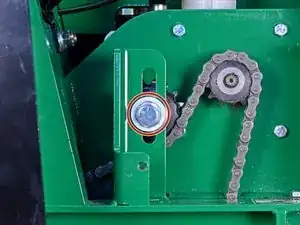

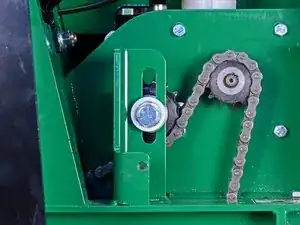

            Use a 3/4 inch socket to loosen the bolt securing the tensioner sprocket until it can freely slide up and down the bracket.

-

-

                  -

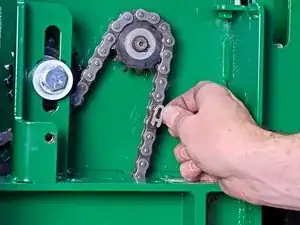

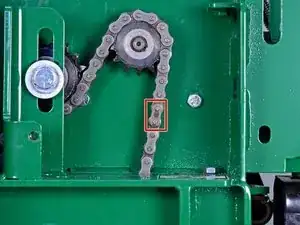

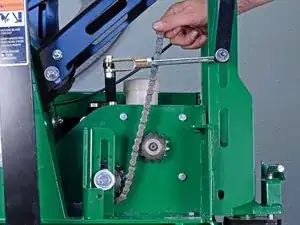

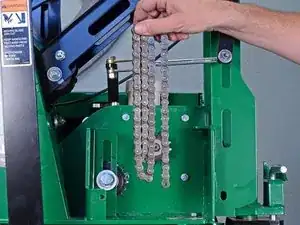

            Roll the machine to turn the chain until the master link is accessible.
-

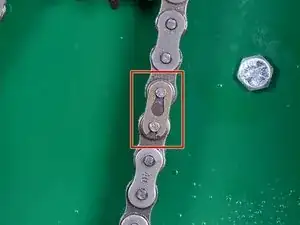

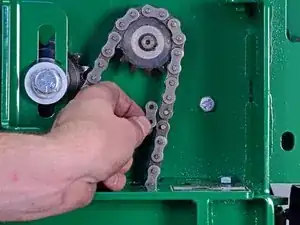

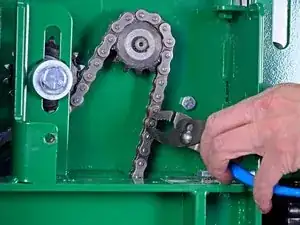

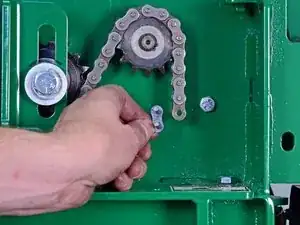

            Notice the open end of the master link retaining plate is facing down.

-

To reassemble your device, follow these instructions in reverse order.
