Cleaning Panasonic NB-G110P Toaster Oven Power Switch

Written By: Fixit Clinic

Comments: 1

Cleaning Panasonic NB-G110P Toaster Oven Power Switch

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

The on/off switch goes bad; it starts by failing intermittently; sometimes you can make it work by slightly pressing it but that gets increasingly annoying. And it may stop working fully.

Step 1

Before starting this guide make sure the toaster oven is unplugged.
If the switch still works and isn't failing yet, simply try cleaning it.

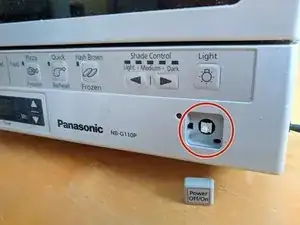

Pry off the grey plastic on-off button to expose the head of the on/off switch.
Apply some electrical contact cleaner (CorrosionX or MG Chemicals Super Contact Cleaner or something similar) or, less ideally, 91% or better isopropyl alcohol to the switch.

Step 2

Work the switch a bit by turning it on and off a lot (still unplugged) and see if that doesn't fix the problem.

Step 3

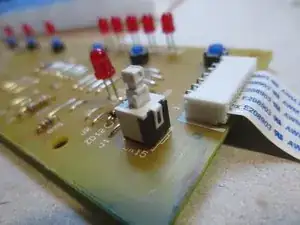

If cleaning the switch doesn't restore it to full function. You'll have to disassemble the toaster oven and replace the switch (SW 15 on the circuit board).
A fairly common 7x7mm 6-pin DPDT (dual-pole-dual-throw) switch will work as an acceptable substitute.
A full writeup is available here: https://fixitclinic.blogspot.com/2016/12...
For even more backup information see https://uspirg.org/blogs/blog/usp/troubl...

Conclusion

To reassemble your device, follow these instructions in reverse order.
