Conair Infiniti PRO Spin Air Brush Circuit Board Replacement

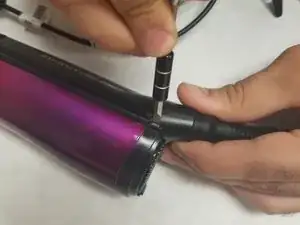

Look for the black screw covers near the top of the brush. Take the covers off with flat head screw driver.

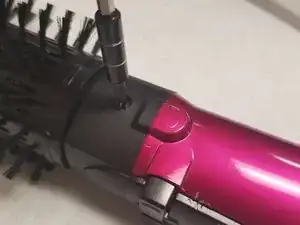

Use a Phillips #1 screwdriver to remove the screws that secure the brush head.

Gently take off the brush top.

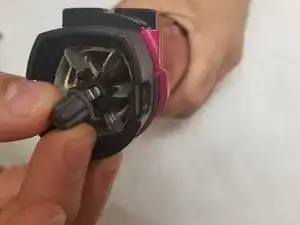

Take out the black gear by pulling up.

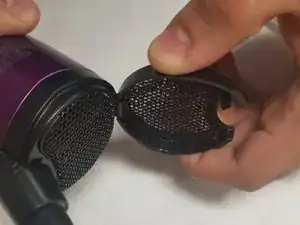

Take the top of air filter off.

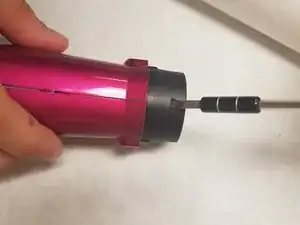

Use flat head screwdriver to pop off the bottom air filter.

Gently use a flat head screw driver to take of the black cover, covering the plastic shell.

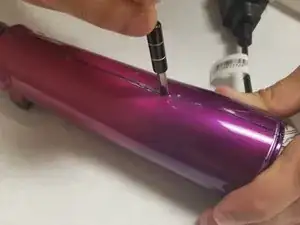

Using your flat head screwdriver to go along the seams of the plastic shell till the shell pops apart.

Then take the switch cover and buttons off.

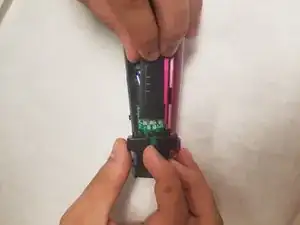

Then take your Philips screw driver (ph1 size head) and unscrew the circuit board. The screw is located in the middle of the board.

Remove the black heater cover by sliding it off.

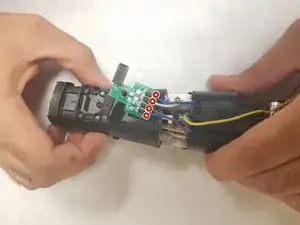

Desolder each of the four connections, and remove the circuit board.
