Cuisinart Griddler GR- 4N LED Light Replacement

Written By: Kayla Londono
  • Comments: 6
Cuisinart Griddler GR- 4N LED Light Replacement

Difficulty

Very difficult

Steps

9

Time Required

15 - 20 minutes

Introduction

If the indication lights on the Cuisinart Griddler GR- 4N have stopped working when your device is in use then the this guide will help you replace the LED lights.

  1. 3JSUhroXuEcbdKZ2
    3JSUhroXuEcbdKZ2
    vKsvVmBN5dteiINP

    • Ensure device is turned unplugged, cooled down and clean before attempting any replacements.

    • Remove cooking plates by pushing in the tabs on each side of the plate at the same time.

  2. et1fD33cqagSWRaW

    • Remove the six 5.5mm Phillips #2 screws that secure the bottom heating coil to the device.

  3. 3uQEci5MBG6DsRnh

    • Remove the four 30 mm Phillips #2 screws that secure the bottom heating apparatus.

  4. YHpMsT3LhIQM1QB4

    • Remove the single 5.5 mm Phillips #2 screw next to center black button.

    • After removing the center screw the metal plate should be free to remove.

  5. wZb4JVHgCp6aQjMh
    wZb4JVHgCp6aQjMh
    kpjm4Jbls5fMNRDH

    • Lift the bottom heating apparatus up and remove large black center piece by pushing down on black button while sliding out.

    • Realign all surface and put device back together making sure all parts are lined up and heating surfaces are making contact.

    • The aligned parts will allow the cooking surfaces to work properly.

    Can you pls give your inputs as to how to fix the blinking light problem of the same Cuisinart model? In my sandwich maker and panini press both the left as well as the right knob light start flickering at the same time and the device wouldn't heatup

    Charu Bhardwaj -

  6. ccUBPOnrnTDOxGAb

    • Remove the two 6 mm Phillips #2 screws that secure the knob circuit board.

    • Move the circuit board to the side so it is out of the way.

  7. NLTVXClSq6UwQ1B1

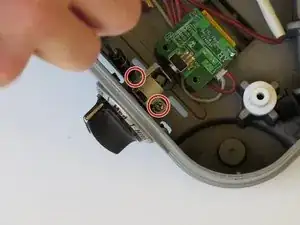

    • Remove the two 6 mm Phillips #2 screws that secure the white plastic LED holder.

    This would be helpful except that I need the knobs !

    soaplady -

  8. xG4rGdDnHnXHhyGx
    xG4rGdDnHnXHhyGx
    nWTfsiFMAyZW1d6F

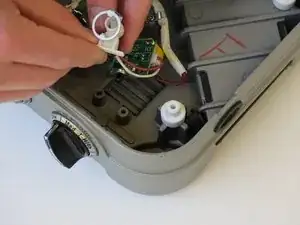

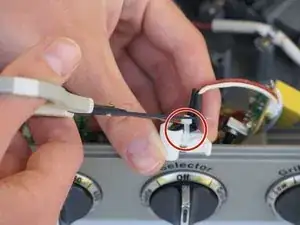

    • Cut the zip ties which hold the LED lights in place with scissors/knife.

  9. QmcHlGwVvZ2AWMuu
    QmcHlGwVvZ2AWMuu
    vqxwlxuAtpKeFSu3

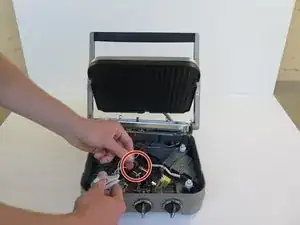

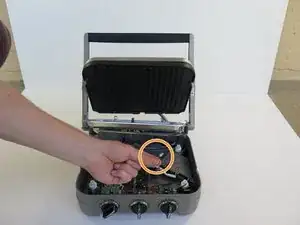

    • Slide back black plastic covers and cut the two wires connected to the LED with a pair of scissors.

    • The LED bulb should now be free to remove. In order to replace bulb you must solder the new LED into the existing wires.

    • Upon soldering the LED will need to be zip tied back in place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
