Cuisinart Griddler GR-4N Handle Replacement

Written By: Kayla Londono
  • Comments: 1
Cuisinart Griddler GR-4N Handle Replacement

Difficulty

Moderate

Steps

3

Time Required

20 - 30 minutes

Introduction

If the handle has broken off of the device you will have to reattach it or a new handle depending on the damage to your handle. This guide will show you the necessary steps to do so.

  1. cs62uDvRC3qRcLEZ

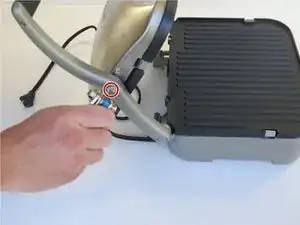

    • Ensure device is turned off, unplugged, cooled down and clean before attempting any replacements.

    • Start by unscrewing the triple-square bolt.

  2. pRjExyYpHTlID64X

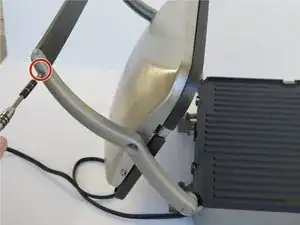

    • Next, unscrew the Phillips #2 screw attaching it to the black handle .

  3. tdwEdRirdAbuZs1u
    tdwEdRirdAbuZs1u
    ht2TOc4nECocKVlo

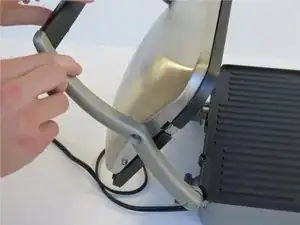

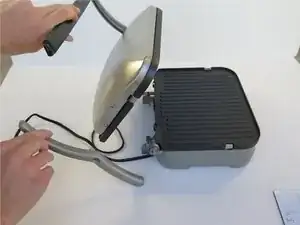

    • You can now pull the handle off of the griddler and reattach a working handle.

Conclusion

To reassemble your device, follow these instructions in reverse order.
