D-Link dir-645 Disassembly

Written By: Endorph
  • Comments: 0
D-Link dir-645 Disassembly

Difficulty

Moderate

Steps

5

Time Required

10 minutes

Introduction

  1. fFdnBk2Sbm3juFqQ

    • Pry off the top using a plastic pryer

  2. yLGTwePAbg1Xnh5D

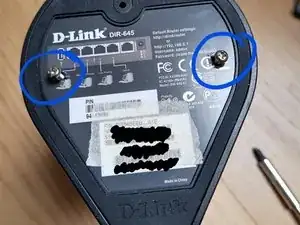

    • Bottom: unscrew the two philips screws . Note: this probably voids any warranty

  3. dmycywPyGmOuSuo2

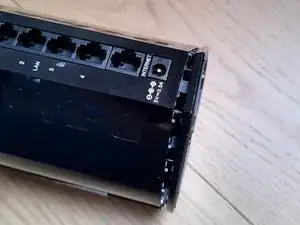

    • Carefully pry off the bottom plastic

  4. QOKS51fWmPMSIIIb
    QOKS51fWmPMSIIIb
    UYgXJEsNHEPabp3L

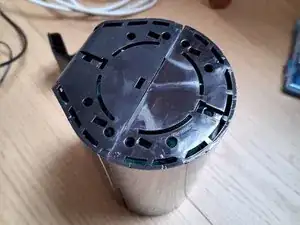

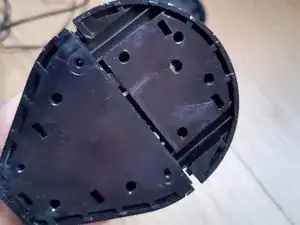

    • Start to pry at the bottom.

    • Work your way around until it comes off.

  5. VTWSrKryUp3nJIJv
    VTWSrKryUp3nJIJv
    w2B4COLpcdlit5ZU

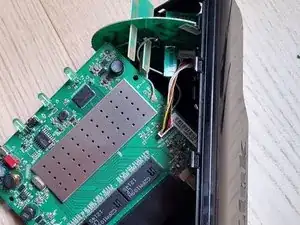

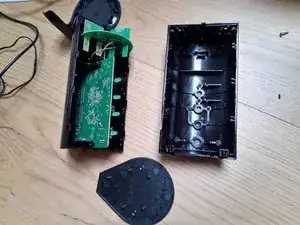

    • The inside consists of the main board ant the antenna, that's it.

    • The 360 deg antenna is connected to the main board with Hirose U.FL connectors and can be easily removed. https://en.wikipedia.org/wiki/Hirose_U.F...

Conclusion

To reassemble your device, follow these instructions in reverse order.
