DJI Mini 3 Chip ID

Written By: CChin
Published: 08/10/23
  • Comments: 2

DJI Mini 3 Chip ID

Published: 08/10/23

Teardown

Introduction

The DJI Mini 3 was released in December 2022 as a slightly more affordable alternative to the Mini 3 Pro.

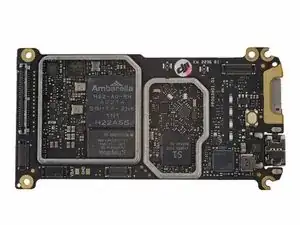

  1. muNiDQ1js2NvI6AP
    muNiDQ1js2NvI6AP
    KK1ORIHZksUnG1Tn

    • Ambarella H22-A0-RH H22 quad-core video SoC

    • Kingston D1216ECMDXGME-U 256 MB DDR3L SDRAM memory

    • HDSC HC32F460JEUA 32-bit ARM Cortex-M4 microcontroller

    • Qualcomm SMB2352–207 dual-cell Li-ion battery charger

    • Monolithic Power Systems MP6507GQ stepper motor driver w/ MOSFETs

    • Silergy SY6280AAC power distribution switch

    • OmniVision WAS7222Q 480 Mbps DPDT analog switch

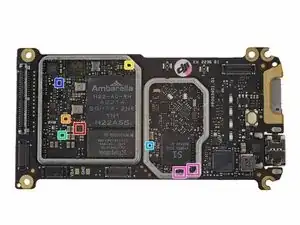

  2. xJw6HruEN42WaErB

    • Texas Instruments TLV75901P 1 A / adj. LDO regulator

    • OmniVision WL2836D12 300 mA / 1.2 V LDO regulator

    • OmniVision WL2836D18 300 mA / 1.8 V LDO regulator

    • OmniVision WL2848D18 300 mA / 1.8 V LDO regulator

    • OmniVision WL2836D25 300 mA / 2.5 V LDO regulator

    • Nexperia 74LVC2T45 dual supply translating transceiver

    • Nexperia 74LVC1G08 single 2-input AND gate

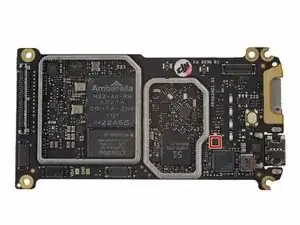

  3. AaIwq2NMSpn1UoyN

    • Yangjie Electronic Technology YJQ1216A P-Channel MOSFET

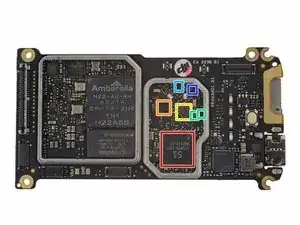

  4. 5DRISf3SL6YcaslN

    • Possibly Leadcore S1 RF transceiver

    • Kangxi Communication Technologies KCT8247HE-1 2.4 GHz WLAN front-end module

    • Kangxi Communication Technologies KCT8576N 5 GHz WLAN front-end module

    • Likely Maxscend MXDx213 low noise amplifier

    • Likely Maxscend DPDT RF switch

    • Likely Maxscend MXD8622E SPDT RF switch

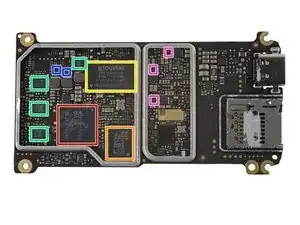

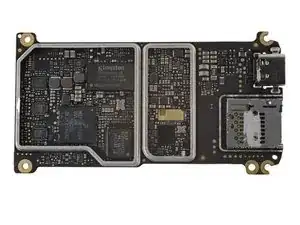

  5. niBJJovo11LZDOjt
    niBJJovo11LZDOjt
    4TMklQDeuMJc6nbU

    • NXP Semiconductor MIMXRT1064DVL6B i.MX single core application processor

    • Kioxia TC58NVG1S3HBAI6 256 MB NAND flash memory

    • Kingston D1216ECMDXGME-U 256 MB DDR3L SDRAM memory

    • Monolithic Power Systems MP6543HGL 3-phase power stage

    • Silicon Content Technology SCT2260A 6 A synchronous step-down DC-DC converter

    • Silicon Content Technology SCT2230 3 A synchronous step-down DC-DC converter

    • Monolithic Power Systems DC-DC Converter

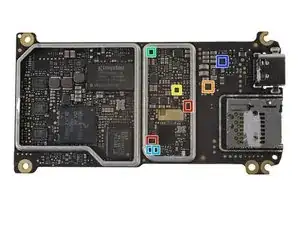

  6. VouX6XIB2PYNGJqs

    • OmniVision WAS7222Q 480 Mbps DPDT analog switch

    • Texas Instruments TLV75901P 1 A / adj. LDO regulator

    • Possibly Linearin LTP3330 300 mA / 3.0 V LDO Regulator

    • OmniVision WL2836D33 300 mA / 3.3 V LDO regulator

    • Nexperia 74LVC2T45 dual supply translating transceiver

    • Yangjie Electronic Technology YJQ1216A P-Channel MOSFET

  7. ZVaiZTsWZgxBGINZ

    • Synaptics SYN43456PXKUBG single-chip 5G WiFi 802.11ac w/ Bluetooth 5 & FM receiver

    • Likely Maxscend MXD8622E SPDT RF switch

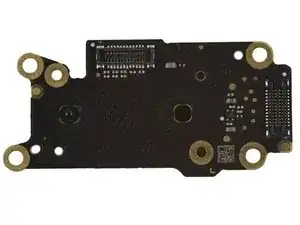

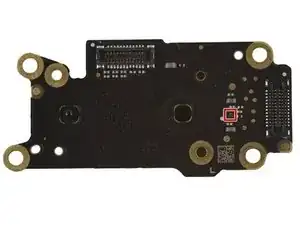

  8. CZqdtsAoPIewjPMq
    CZqdtsAoPIewjPMq
    vpPGfxvZiHCYS5Ze

    • OmniVision WL2836D33 300 mA / 3.3 V LDO regulator

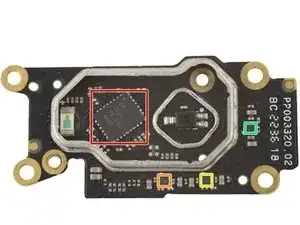

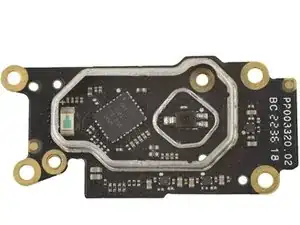

  9. PtSiuraMZUQOYnYk
    PtSiuraMZUQOYnYk
    tv1MqDqP4HqMICEj

    • Texas Instruments OPT3101 distance sensor analog front-end

    • SG Micro SGM2036-1.2 300 mA / 1.2 V LDO regulator

    • SG Micro SGM2036-1.8 300 mA / 1.8 V LDO regulator

    • SG Micro SGM2036-2.8 300 mA / 2.8 V LDO regulator

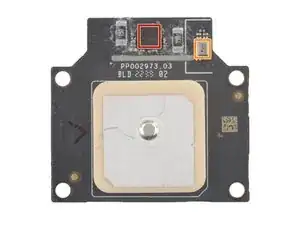

  10. woLHllLXPltWolnJ
    woLHllLXPltWolnJ
    2AmQSXYDQIXBu5NS

    • TDK-InvenSense ICM-40609-D 6-axis MEMS accelerometer & gyroscope

    • Goertek SPL06-001 pressure and temperature sensor

  11. prgmkkUWUOSoxIts
    prgmkkUWUOSoxIts
    sPgJyqCMMkJEYSF2

    • u-blox UBX-M10050-KB GNSS receiver

    • Maxscend MXDLN16TP GNSS low noise amplifier

    • OmniVision WL2848D18 300 mA / 1.8 V LDO regulator

    • OmniVision WL2836D33 300 mA / 3.3 V LDO regulator

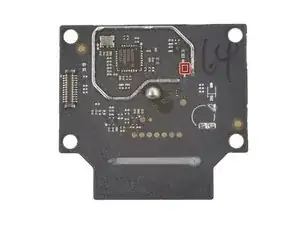

  12. hAm4UXxFTjb4dWbN

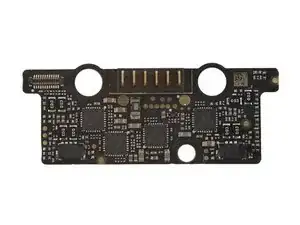

  13. AEkqiTWiFA6r5Xeq
    AEkqiTWiFA6r5Xeq
    EsvCQRmXvoRpgg3q

    • Texas Instruments DRV8328B 3-phase BLDC gate driver

    • OmniVision WL2836D33 300 mA / 3.3 V LDO regulator

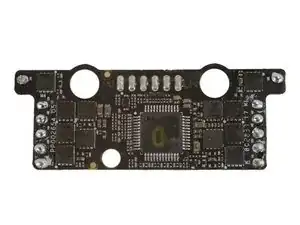

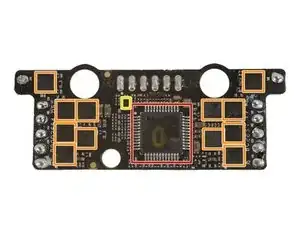

  14. HrfcleehyL2vcQKD
    HrfcleehyL2vcQKD
    eNkExRMt4QIVWakv

    • Spintrol SPC1168APE48 32-bit ARM Cortex-M4 microcontroller

    • Vergiga VS3622DB 30 V dual N-channel MOSFET

    • Nexperia 74LVC2T45 dual supply translating transceiver

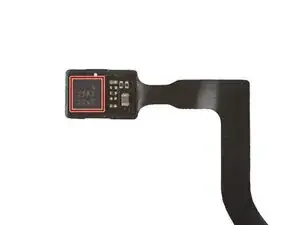

  15. KNdJKwlmAU1gLfOM
    KNdJKwlmAU1gLfOM
    1GyZEQHeVIOVaY1N

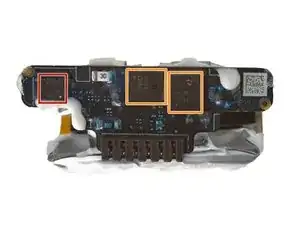

  16. tUKpZTJlAsSgIAHW
    tUKpZTJlAsSgIAHW
    mqQkJSaZvrYgiZUH

    • Texas Instruments BQ9003 battery fuel gauge (likely)

    • Advanced Power Electronics Corp. AP3N1R8MT 30 V N-channel MOSFET

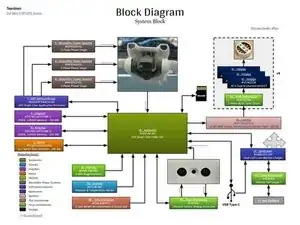

  17. psBlTBrXMgK4J5JP
    psBlTBrXMgK4J5JP
    NiD2Tbpllbodc1XL

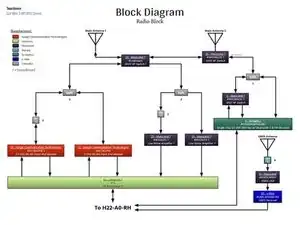

    • Predicted block diagram primarily based on available datasheets and observed implementation in product.
