Introduction
This guide demonstrates how to remove the outer shell of the DJI Phantom 2 Vision. When completing the disassembly make sure to clean any residue that may be surrounding the screws before beginning, as doing this will ensure no over or under-tightening of screws may occur.
You may need to remove the outer shell of the DJI Phantom 2 Vision if your drone has sustained damage to the structure or if you need to access the internal components for repair.
Before you begin, make sure your device is powered off and disconnected from the charger.
Note: The drone we worked on already had the propellers removed. However, you will need to remove the propellers before taking off the top shell. Refer to the DJI Phantom 2 Vision+ Propellers Removal for detailed instructions, as the process is identical.
-
-

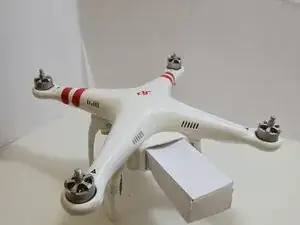

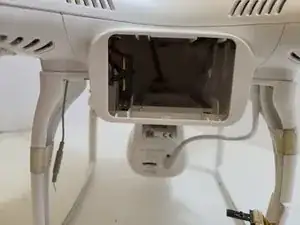

The battery is located on the back side of the drone. There will be a large rectangular indent that is pushing outward from the drone
-
-
-

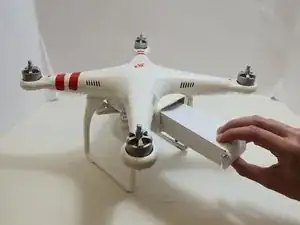

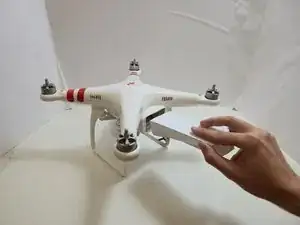

Remove the battery from the compartment by pinching the top and bottom pressure points near the center and pulling the battery towards you.
-
-
-
Flip Device so Motors face down
-

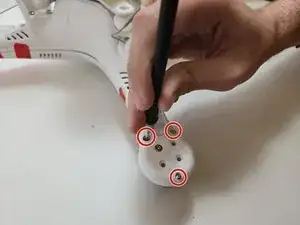

Unscrew 4 (6mm) screws next to the landing gear on each arm using a #2 Allen head bit.
-
-
-

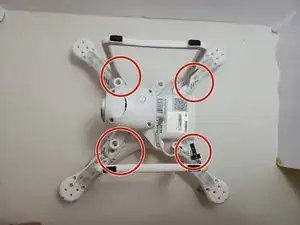

The final screws should be located around the base of the 4 unscrewed on each arm in step 1.
-

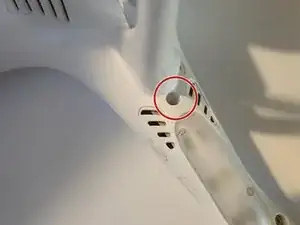

Unscrew each of the 12 screws. There are 2 (9mm) Allen head screws on each arm. Remove using #2 Allen head bit. Final screw is located at end off arm. Remove using 00 Philips head bit.
-
-
-
Lift Shell off of device slowly.
-
Disconnect the GPS wire from the mother board, it should easily pull out with not much force.
-
To reassemble your device, follow these instructions in reverse order.
