Dell DJ Disassembly

Written By: William Abel
  • Comments: 1
Dell DJ Disassembly

Difficulty

Moderate

Steps

4

Time Required

15 minutes

Introduction

This guide should be followed closely before attempting to repair your device. Follow the steps in great detail to ensure the success of your repair.

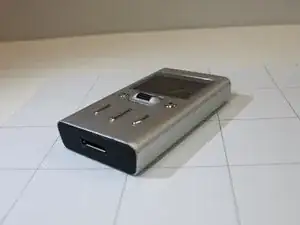

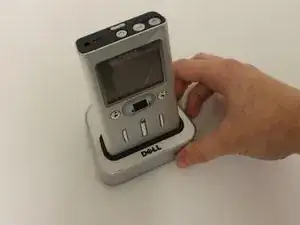

  1. lYM3TBgRs2fJCKVe
    lYM3TBgRs2fJCKVe
    Iul4SiakdjGoCwim
    FPOjpXiCS6Y6G1n2

    • Inspect your device and be sure that it matches the device that this guide is disassembling.

    • Familiarize yourself with the specific design of the device.

    • Battery replacement is the only repair that our guide offers that does not require a complete tear down.

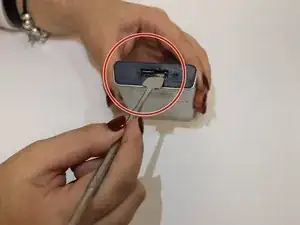

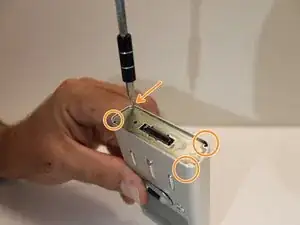

  2. MZxC6YTgTxjKrMTZ
    MZxC6YTgTxjKrMTZ
    QBYoVHIWOsqen1JG
    OShRmALkQoMZqbiS

    • Remove the bottom panel with the metal spudger. This panel may be fused to the outer shell with a dot of adhesive.

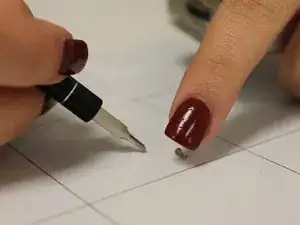

    • Four screws fasten a metal plate to the device. Using the device magnetic mat and 54 bit (Phillips J000) driver, remove the screws.

    • Be sure to keep the 4mm screws together and organized on the device magnet plate.

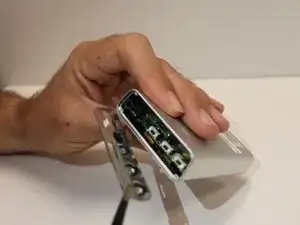

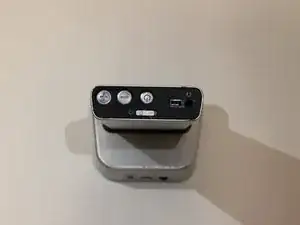

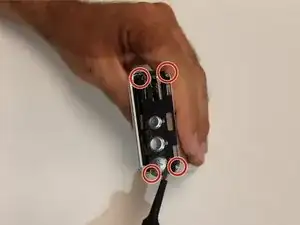

  3. U5n4L3QSfrASWm4q
    U5n4L3QSfrASWm4q
    15A5ZB5UMFtpqLdi
    NXA6BUAfXsRCgPx6

    • The top plate of the device is attached by a dot of glue. Use the metal spudger to pry the plate off.

    • After the top plate is removed, remove the four 4mm screws that attach the inner plate.

    • When the plate is removed, the motherboard will be ready to be removed.

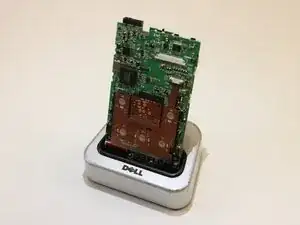

  4. RJ1OHvg1QXHMdSUR
    RJ1OHvg1QXHMdSUR
    H3n2eBLcHmBsV1Yh
    PDk3xhpfyT1cRXZU

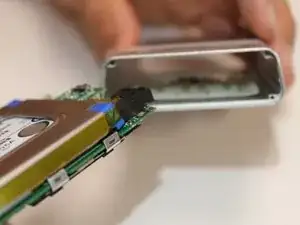

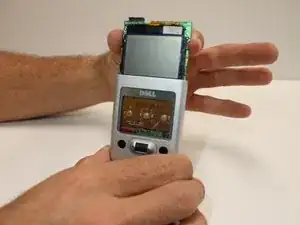

    • Slide the motherboard out of the protective case.

    • Be careful not to snag any wires.

    • When the motherboard is exposed the device is ready to be inspected and repaired.
