Dell Inspiron 530 Hard Drive Replacement

Written By: James Aldag
  • Comments: 1
Dell Inspiron 530 Hard Drive Replacement

Difficulty

Moderate

Steps

5

Time Required

3 - 5 minutes

Introduction

Use this guide to replace the hard drive of the Dell Inspiron 530.

  1. NwGYw6d1vHDha66L

    • Place the case on its side.

    • Locate and remove the two 13.1 mm thumbscrews.

  2. GLsbDn3OLp1TxP1O

    • Slide the side panel towards the back and remove.

    merci beaucoup à vous

    Sylviane Dufrasne -

  3. NKhDDLiKfXvxIyN5

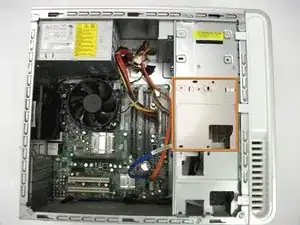

    • Locate the hard drive.

  4. et5jRvdXFrPpvnRS

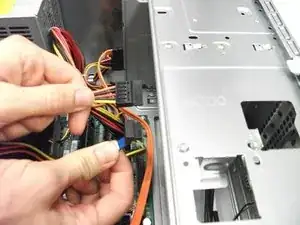

    • Disconnect the two cables from the back of the hard drive.

  5. GlpFAldhwqB6hb6o

    • Locate and remove the four 7.8 mm screws with a Phillips #0 screwdriver.

    • Pull the hard drive out towards the back of computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
