Dell Inspiron 530 Power Supply Replacement

Written By: Doug Howe
  • Comments: 2
Dell Inspiron 530 Power Supply Replacement

Difficulty

Moderate

Steps

7

Time Required

5 - 7 minutes

Introduction

This guide will demonstrate removing the computer's power supply.

  1. NwGYw6d1vHDha66L

    • Place the case on its side.

    • Locate and remove the two 13.1 mm thumbscrews.

  2. GLsbDn3OLp1TxP1O

    • Slide the side panel towards the back and remove.

    merci beaucoup à vous

    Sylviane Dufrasne -

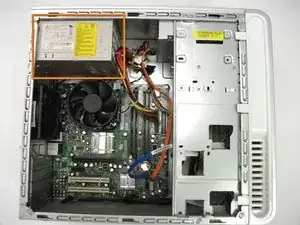

  3. CJ5ZviXcIfyZoW2V

    • Locate the power supply in upper-back corner of the case.

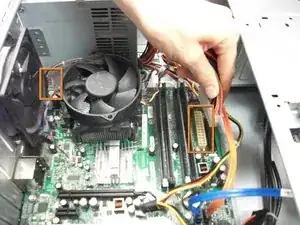

  4. nGkIBlE6WvT6IvWW

    • Remove the two power cables from the motherboard.

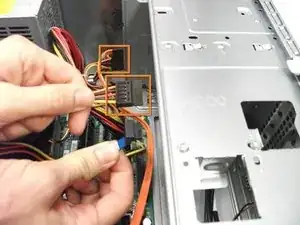

  5. NrB3a1gQcsiNEyaH

    • Remove the power cables from the CD/DVD drive and hard drive.

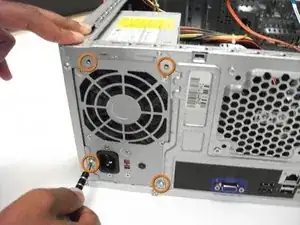

  6. ncVFBiOxX4uDGYyQ

    • Locate and remove the four Philips #0 8.9 mm screws on the outside of the case.

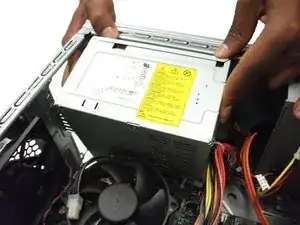

  7. BHDNUN1NJMXsZg4P

    • Gently remove the power supply from the case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
