Dell Optiplex GX620 RAM Replacement

Written By: Kristina
  • Comments: 1
Dell Optiplex GX620 RAM Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

RAM should be replaced if the computer has memory issues. This is sometimes the case when the computer won't boot, or simply runs too slow for comfort.

  1. VYWSKnFhgV5RDis2
    VYWSKnFhgV5RDis2
    jC1F1otMKgy5BQdH

    • Power down your PC and remove the power cord from the back.

  2. VeQVnIMoHCXqrHq1
    VeQVnIMoHCXqrHq1
    aOhZOR45dwjQSLXE

    • Press and hold the power button for about 10 seconds, then release.

    • This helps drain any remaining power stored in the capacitors, so that you can safely work on the internal components.

  3. 5gIdgpg3xnsVtHRH

    • With the computer standing upright, firmly pull on the tab at the back of the computer.

    • When the side panel pops free, gently pull the panel away from the computer.

    • If you have trouble freeing the side panel from the case, you may need to pull the tab a bit harder.

  4. K1AiwBdyPERgWnrU

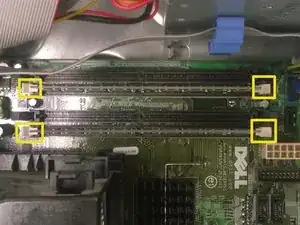

    • Using the tips of your fingers, press out the securing clips on both sides of the memory modules.

  5. jHEHsVpISsW5RIUJ

    • To remove the memory, pull straight up on the module.

Conclusion

To reassemble your device, follow these instructions in reverse order.
